SMMMS-H-X4 Standard Mounting Magnets

Dimensions:
Diameter = 1 1/4″ (1.25″)
Internal Thread Size = #10-32 UNF 2B
Height = 3/8″ (0.375″)
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Axial (Poles on Flat Ends)
Weight: 1.75 oz. (49.67 g)
Pull Force: 66.38 lbs
Surface Field: N/A
Brmax: 13,200 Gauss
BHmax: 42 MGOe

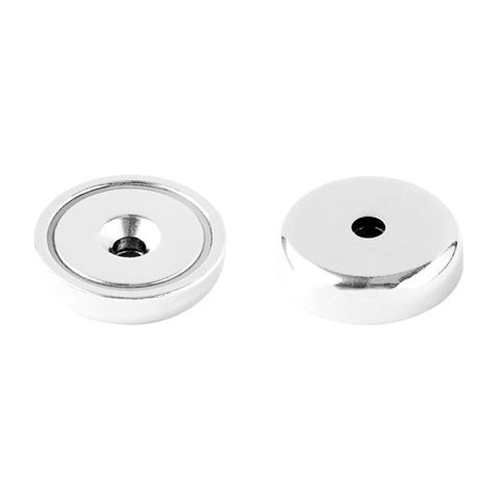

The SMMMS-H-X4 is a flat mounting magnet with an internal thread in the center. These unique mounting magnets are incredibly useful for when you need to securely fasten a magnet to your project.
