SMMMWR-B-X0 Stainless Mounting Magnets | Stanford Magnets

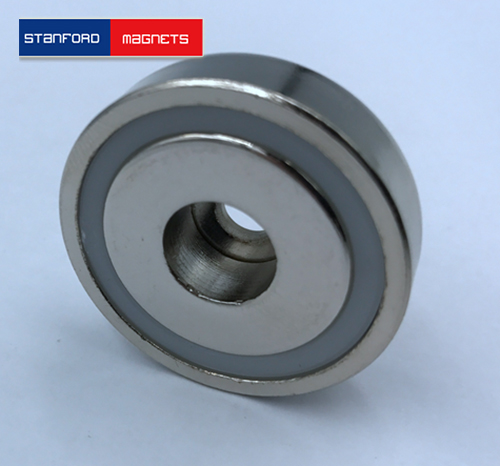

SMMMWR-B-X0 Stainless Mounting Magnets

Dimensions:
Diameter = 1″ (1.00″)
Hole Size = #8 Screw
Height = 1/4″ (0.25″)
Material: Assembly of:
Stainless steel cup,
Stainless steel cover &
NdFeB magnet, grade N42
Plating/Coating: None (stainless steel construction)
Weight: 0.64 oz. (18.12 g)
Pull Force: 13.2 lbs
Brmax: 13,200 Gauss
BHmax: 42 MGOe

This stainless steel mounting magnet allows neodymium mounting magnets to be used in wet environments, where occasional contact with moisture is expected.

Most of our other Mounting Magnets are made with nickel plated magnets that are exposed, with a nickel plated steel cup that the magnet sits in. In outdoor use where magnets can occasionally get wet, both the magnet and the steel cup can corrode or rust. The exposed portions of this sealed magnet are all stainless steel, which protects the internal magnet from corrosion.
