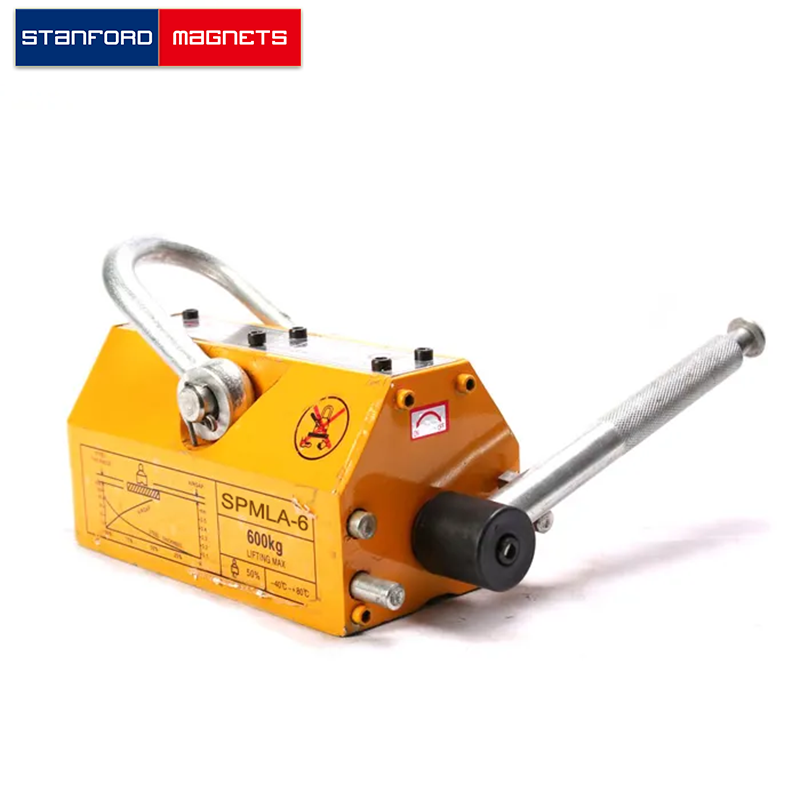

SMON0791 A Series Permanent Magnetic Lifter

Product ID: SMON0791

{{el.prop}}: {{el.options}}

DESCRIPTION
TECHNICAL
TECHNICAL DATA SHEET

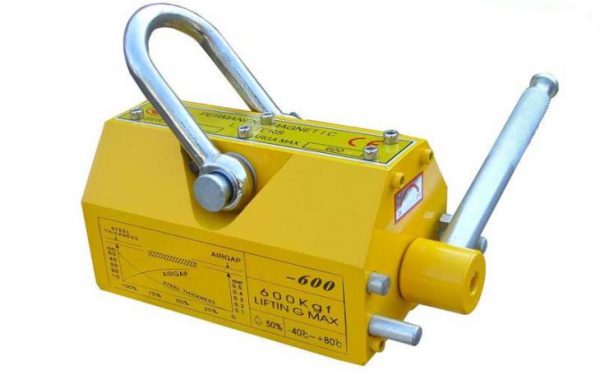

SMON0791 A Series Permanent Magnetic Lifters work with the strong magnetic force produced by NdFeB magnetic circuits and you can control the circuit switches by manual handles, which can rotate between the ON and OFF positions. These lifters are featured with no electricity power needed, small volumes, light weights, powerful lifting forces, easy operation, high safety, and constant magnetism. For these advantages, they are widely applied in factories, docks and warehouses to lift steel sheets, steel ingots and other magnetic objects.

These compact yet powerful Rare Earth lift magnets can be used on flat or round surfaces and contain an internal release on/off device that does not contact or damage the surface of the part being lifted. Permanent magnetic lifts eliminate the fear of dropping the load being lifted due to power failures. Lifting Magnets can help lift metal and glass objects easily.





Download a PDF Specification Sheet
SPEC

SPEC



Model

Rated Lifting Strength (kg)

Cylindrical lifting strength (kg)

Max. pull-off strength (kg)

L

B

H

R

Working Temp. ()

Gross Weight (kg)

SPMLA-100

100

50

350

64

92

67

107

<80

3.0

SPMLA-300

300

150

1050

92

162

91

155

<80

7.5

SPMLA-600

600

300

2100

122

233

118

196

<80

23.0

SPMLA-1000

1000

500

3500

179

268

164

255

<80

55.5

SPMLA-2000

2000

1000

7000

234

378

212

426

<80

125.0

SPMLA-3000

3000

1500

10500

310

497

252

505

<80

220.0

SPMLA-6000

6000

3000

21000

442

621

210

54

<80

440
