SMON0999 Electric Lifting Magnet XDA-13/27

Model: XDA-13/27

Insulation class: B (130℃)

Insulation withstand voltage: AC600V 50/60Hz 1min

Power: 2W

Suction power: 0.5kg

INQUIRY Can't Find The Size

Follow Us On


Description

Electric Lifting Magnet Introduction

Electric Lifting Magnet can generate a strong suction force when it is energized, and it can be installed in the automation equipment to stop or move the object to be sucked. It is a powerful and compact magnet, with a smooth and flat surface, low consumption, and reliable, simple control. It also features energy saving and can be operated remotely.

Electric Lifting Magnet has a simple structure, small volume, and high adsorption force. It has good temperature stability and insulation, and high electrical conductivity.

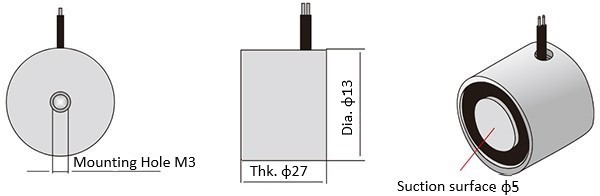

Electric Lifting Magnet Specification

Grade XDA-13/27
Voltage 12V 24V
current 0.16A 0.08A
power 2W
suction 0.5kg

Electric Lifting Magnet Applications

Electric Lifting Magnet is widely used in automatic distribution production lines, sorting machines, manipulators, test equipment, medical equipment, grinding, cutting and other automated processing production lines for material or product transportation, transmission, and control.
