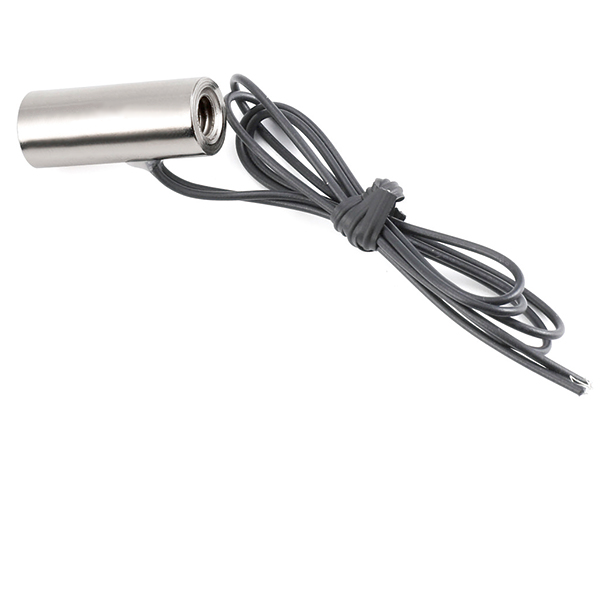

SMON3009 Electric Lifting Magnet XDA-30/20

Product ID:

{{el.prop}}: {{el.options}}

DESCRIPTION
TECHNICAL

Electric Lifting Magnet Introduction

Electric Lifting Magnet can generate a strong suction force when it is energized, and it can be installed in the automation equipment to stop or move the object to be sucked. It is widely used in automatic distribution production lines, sorting machines, manipulators, test equipment, medical equipment, grinding, cutting and other automated processing production lines for material or product transportation, transmission, and control.

Electric Lifting Magnet Specification

Grade XDA-30/20
Voltage 12V 24V
current 0.4A 0.2A
power 5W
suction 10kg

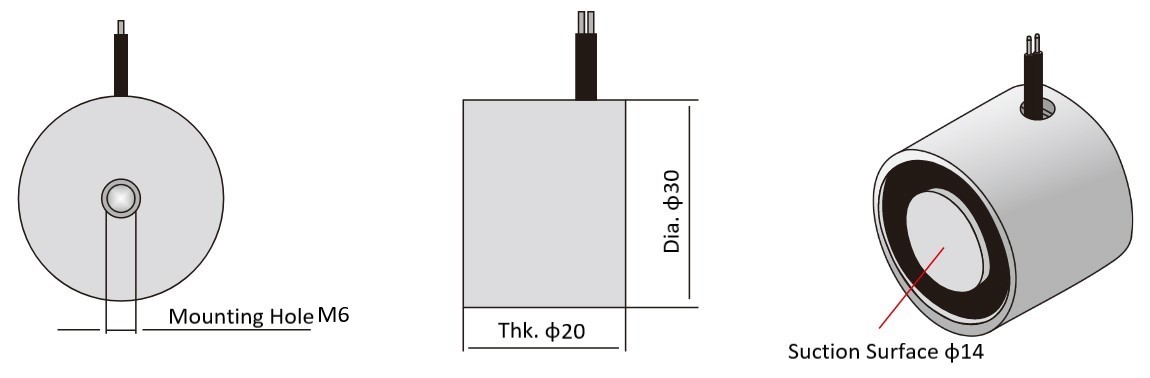

Electric Lifting Magnet Specification

Electric Lifting Magnet Applications

Electric Lifting Magnet is used in the assembly line, sorting machine, mechanical arm, experimental facility, etc.
Download a PDF Specification Sheet
