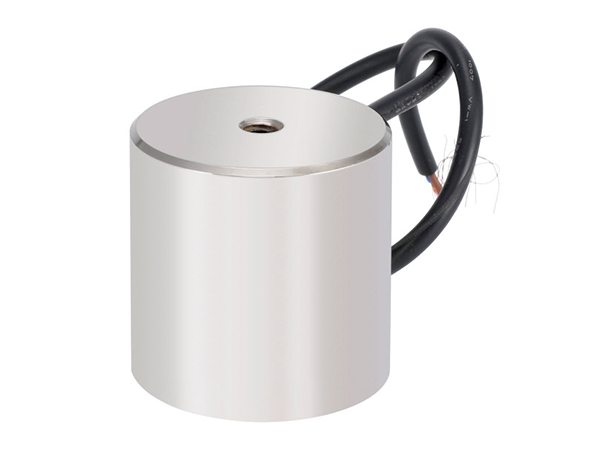

SMON3021 Electric Lifting Magnet XDA-45/64

Product ID: SMON3021

{{el.prop}}: {{el.options}}

DESCRIPTION
TECHNICAL

Electric Lifting Magnet Introduction

Electric Lifting Magnet can generate a strong suction force when it is energized, and it can be installed in the automation equipment to stop or move the object to be sucked. It is widely used in automatic distribution production lines, sorting machines, manipulators, test equipment, medical equipment, grinding, cutting and other automated processing production lines for material or product transportation, transmission, and control.

Electric Lifting Magnet Specification

Grade XDA-45/64
Voltage 12V 24V
current 0.76A 0.38A
power 9W
suction 50kg

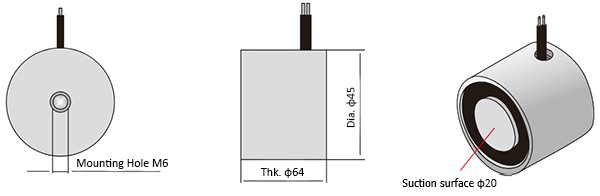

Electric Lifting Magnet Specification

Electric Lifting Magnet Applications

Electric Lifting Magnet is used in assembly lines, sorting machines, mechanical arms, experimental facilities, etc.
Download a PDF Specification Sheet
