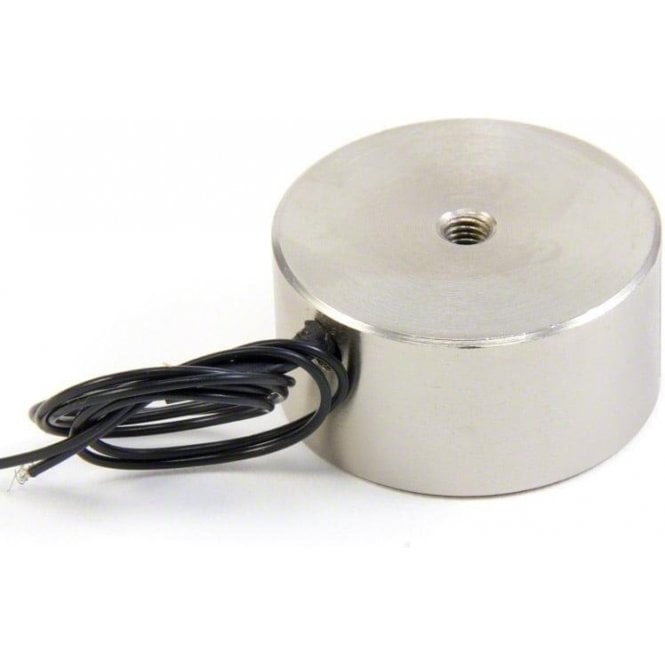

Electric Lifting Magnet Introduction
Electric Lifting Magnet can generate a strong suction force when it is energized, and it can be installed in the automation equipment to stop or move the object to be sucked. It is widely used in automatic distribution production lines, sorting machines, manipulators, test equipment, medical equipment, grinding, cutting and other automated processing production lines for material or product transportation, transmission, and control.

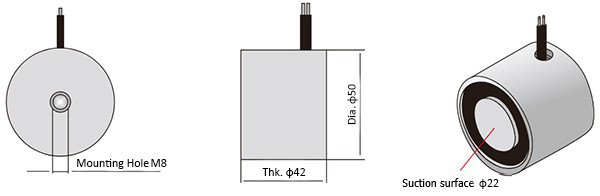

Electric Lifting Magnet Specification
Grade |
XDA-50/42 |
Voltage |
12V |
24V |
current |
0.92A |
0.46A |
power |
11W |
suction |
88kg |
Electric Lifting Magnet Applications
Electric Lifting Magnet is used in assembly lines, sorting machines, mechanical arms, experimental facilities, etc.
