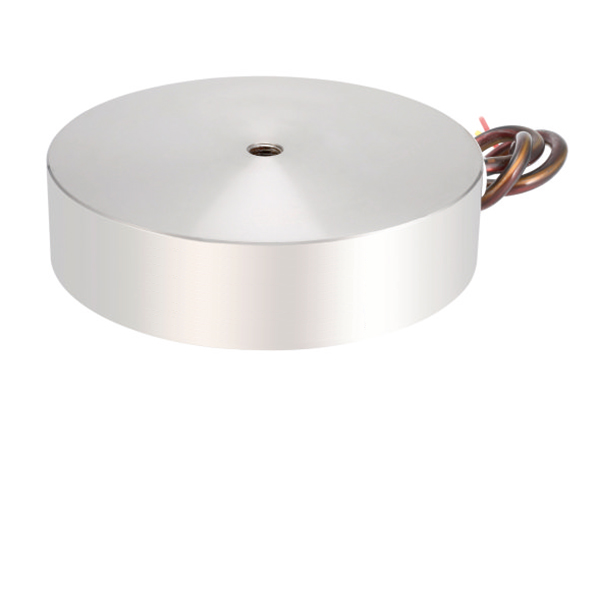

SMON3032 Electric Lifting Magnet XDA-300/100

Model: XDA-300/100

Insulation class: B (130℃)

Insulation withstand voltage: AC600V 50/60Hz 1min

Power: 500W

Suction power: 5000kg

INQUIRY Can't Find The Size

Follow Us On


Electric Lifting Magnet Introduction

Electric Lifting Magnet can generate a strong suction force when it is energized, and it can be installed in the automation equipment to stop or move the object to be sucked. It is widely used in automatic distribution production lines, sorting machines, manipulators, test equipment, medical equipment, grinding, cutting and other automated processing production lines for material or product transportation, transmission, and control.

Electric Lifting Magnet Specification

Grade XDA-300/100
Voltage 12V 24V
current 50A 25A
power 500W
suction 5000kg

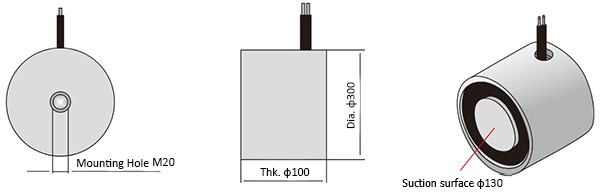

Electric Lifting Magnet Specification

Electric Lifting Magnet Applications

Electric Lifting Magnet is used in assembly lines, sorting machines, mechanical arms, experimental facilities, etc.
