SMON3033 Permanent Electromagnet XDA-12/12D | Stanford Magnets

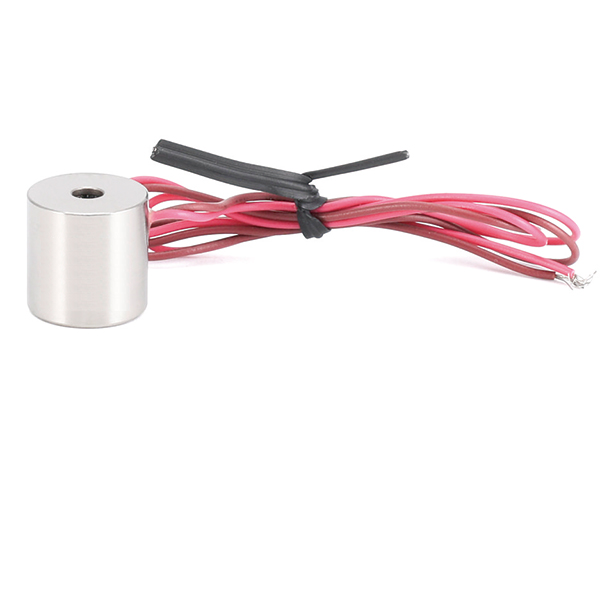

SMON3033 Permanent Electromagnet XDA-12/12D

Model: XDA-12/12D

Insulation class: B (130℃)

Insulation withstand voltage: AC600V 50/60Hz 1min

Power: 2.5W

Suction power: 1kg

INQUIRY Can't Find The Size

Follow Us On


Description

Electric Lifting Magnet Introduction

Electric Lifting Magnet has a permanent magnetic field. When supplied with power, the magnetic field is turned off or neutralized. The current is used to neutralize the magnetic field and holding force created by the powerful neodymium magnet. This type of electromagnet is used when the magnetic field is necessary to work most of the time (>50%), and off in a while.

Electric Lifting Magnet Specification

Grade XDA-12/12D
Voltage 12V 24V
current 0.2A 0.1A
power 2.5W
suction 1kg

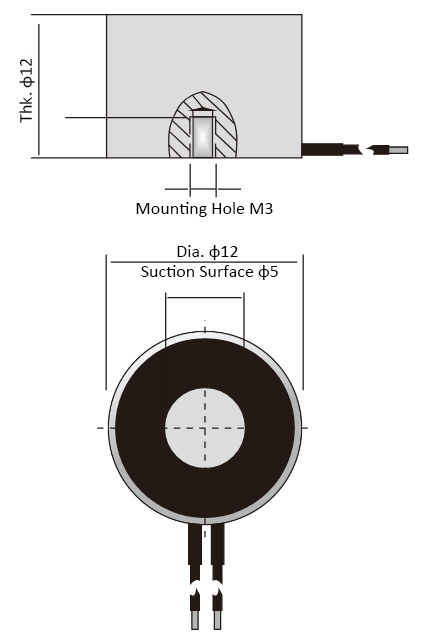

Electric Lifting Magnet Specification

Electric Lifting Magnet Applications

Electric Lifting Magnet is used when the magnetic field is necessary to work most of the time (>50%), and off in a while.
