SMON3034 Permanent Electromagnet XDA-15/15D

Product ID: SMON3034

{{el.prop}}: {{el.options}}

DESCRIPTION
TECHNICAL

Permanent Electromagnet Introduction

Permanent Electromagnet has a permanent magnetic field. When supplied with power, the magnetic field is turned off or neutralized. The current is used to neutralize the magnetic field and holding force created by the powerful neodymium magnet. This type of electromagnet is used when the magnetic field is necessary to work most of the time (>50%), and off in a while.

Permanent Electromagnet Specification

Grade XDA-15/15D
Voltage 12V 24V
current 0.28A 0.14A
power 3.5W
suction 2.5kg

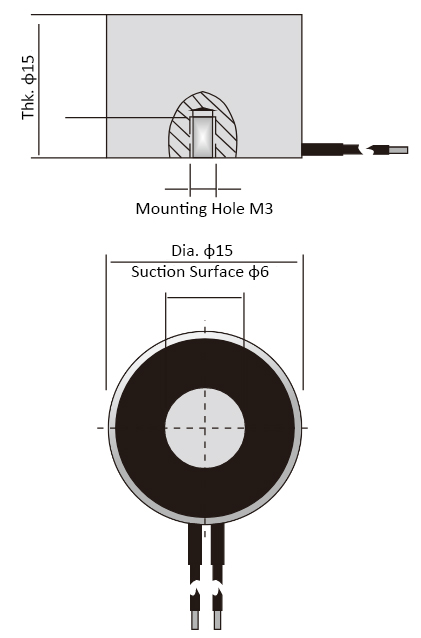

Permanent Electromagnet Specification

Permanent Electromagnet Applications

Permanent Electromagnet is used when the magnetic field is necessary to work most of the time (>50%), and off in a while.
Download a PDF Specification Sheet
