SMON3107 Sandwich Assembly Magnet SME6501 | Stanford Magnets

SMON3107 Sandwich Assembly Magnet SME6501

Product ID SMON3107
Material Nickel Plated Steel Plate
Width 0.844 in
Thickness 0.313 in
Length 3.060 in
Pull lbs 22
Working Temp. -40 ~ 100℃
INQUIRY Can't Find The Size

Follow Us On


Description

Sandwich Assembly Magnet SME6501 Introduction

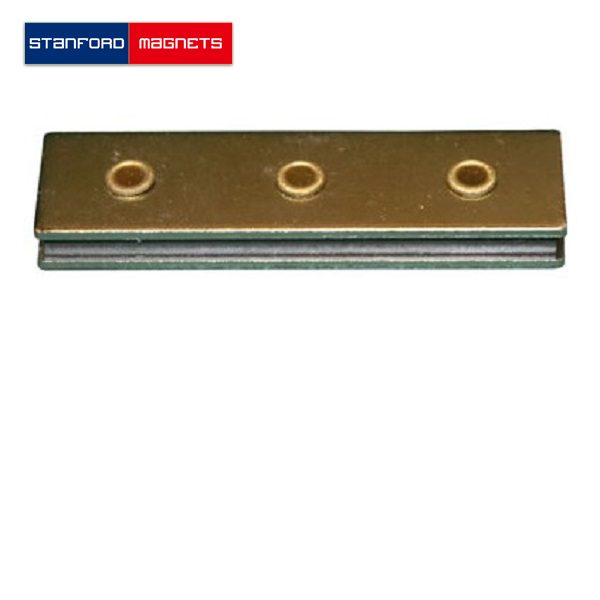

Sandwich Assembly Magnet SME6501 is a ceramic magnet “sandwiched” between two plated steel pole pieces. This design concentrates the magnetic flux and increases the pull strength of the magnet up to 32 times compared to the original.

PDF SPECIFICATION SHEET DOWNLOAD:

Download a PDF Specification Sheet of Custom Stepped Magnets

Sandwich Assembly Magnet SME6501 Applications

  • Displays & Signs
  • Object fixtures
  • Channel letter fasteners
  • Cabinet door latches

Sandwich Assembly Magnet SME6501 Packaging

Sandwich Assembly Magnets by Stanford Magnets are packaged in individual bags or other packaging types you specify.
