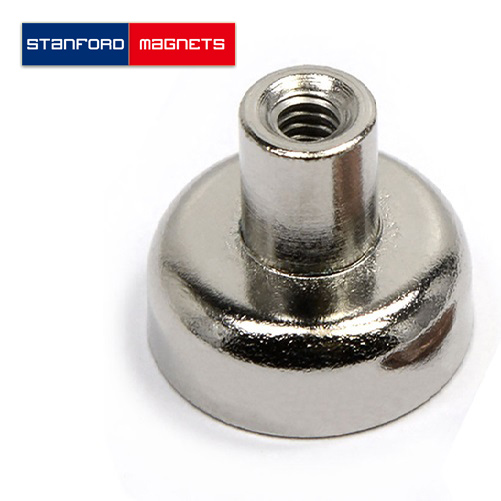

Cup Magnet Neodymium w/ Female Threaded Stud is made of a super strong neodymium magnet encased inside a chrome-plated steel cup. The neodymium magnet is bonded inside of the cup with adhesives. This design forms a magnetic circuit that triples the holding force to 23 lbs! At the same time, the steel cup also protects the magnet from being damaged when frequently used. The female threaded stud is for #8-32.
| Parameter | Details |
|---|---|
| Model Number | SMON3122 |
| Material | N52 Neodymium |
| Shape | Round |
| Dimensions | 20.5 mm × 5 mm × 12.5 mm |
| Type | Cup Magnet |
| Holding Power | 23 lbs (approx. 10.4 kg) |
| Thread Size | #8-32 Female Threaded Stud |
| Housing | Chrome-plated steel cup, magnet secured inside with adhesive |
A high-strength N52 neodymium magnet is embedded in a chrome-plated steel cup. The steel cup is designed with a magnetic circuit that focuses the magnetic field onto the contact surface, increasing the holding power to 23 lbs. At the same time, the steel housing protects the internal magnet from impact damage during frequent use. On the back, a #8-32 female threaded stud is provided for easy mounting with a bolt or screw.
The applications include magnetic holding, lifting, antenna Mounting, positioning, retrieving, etc.
