SMON3171 Permanent Electromagnet XDA-0530 | Stanford Magnets

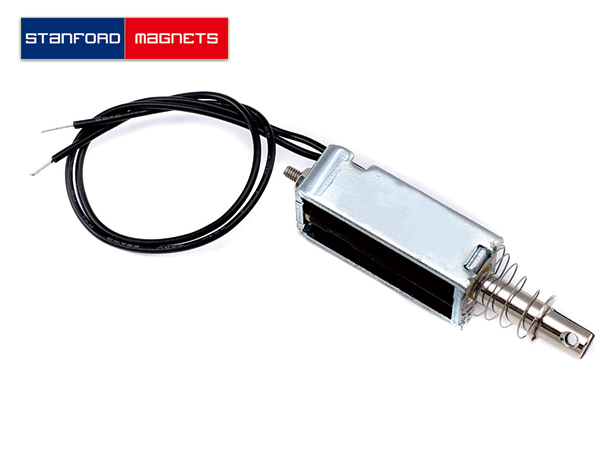

SMON3171 Permanent Electromagnet XDA-0530

Model: XDA-0530

Insulation class: B (130℃)

Insulation withstand voltage: AC600V 50/60Hz 1min

Voltage: 24V

INQUIRY Can't Find The Size

Follow Us On


Description

Permanent Electromagnet Introduction

Permanent Electromagnet has a permanent magnetic field. When supplied with power, the magnetic field is turned off or neutralized. The current is used to neutralize the magnetic field and holding force created by the powerful neodymium magnet. This type of electromagnet is used when the magnetic field is necessary to work most of the time (>50%), and off in a while.

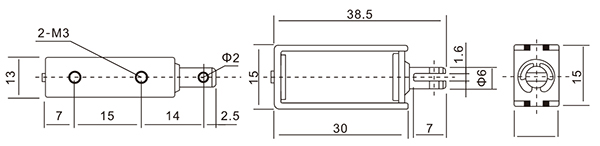

Permanent Electromagnet Drawing

Permanent Electromagnet XDA-0530

Permanent Electromagnet Applications

Permanent Electromagnet is used when the magnetic field is necessary to work most of the time (>50%), and off in a while.
