Suspended Magnetic Plate Introduction
Suspended Magnetic Plate is mainly used on belt conveyors. With four threaded fixing holes and 4 eye screws on the back, the Suspended Magnetic Plate can be firmly hung on the conveyor belt with ropes or iron cables, or fixed on the machine with bolts. The suspended magnetic plate can pick up larger iron impurities in large flow materials from a relatively long distance.

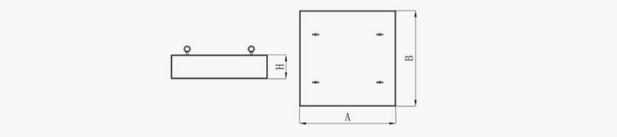

Suspended Magnetic Plate Specification
| Model |
Dimensions (mm) |
Magnetic field action distance |
Weight (Kg) |
| H |
A |
B |
| SWMP-SPM18 |
180 |
400 |
400 |
180 |
123 |
| 500 |
500 |
192 |
| SWMP-SPM25 |
250 |
600 |
600 |
200 |
380 |
| 700 |
700 |
517 |
| SWMP-SPM35 |
350 |
800 |
800 |
220 |
1064 |
| 900 |
900 |
1346 |
| SWMP-SPM40 |
400 |
1000 |
1000 |
240 |
1851 |
| 1100 |
1100 |
2240 |
| 1200 |
1200 |
2667 |
Suspended Magnetic Plate Applications
Suspended Magnetic Plate is mainly used to remove nails, nuts, wires, and other iron impurities during the transportation of gravel, grain, sugar, flour, wood, minerals, or other granular or lumpy materials.
