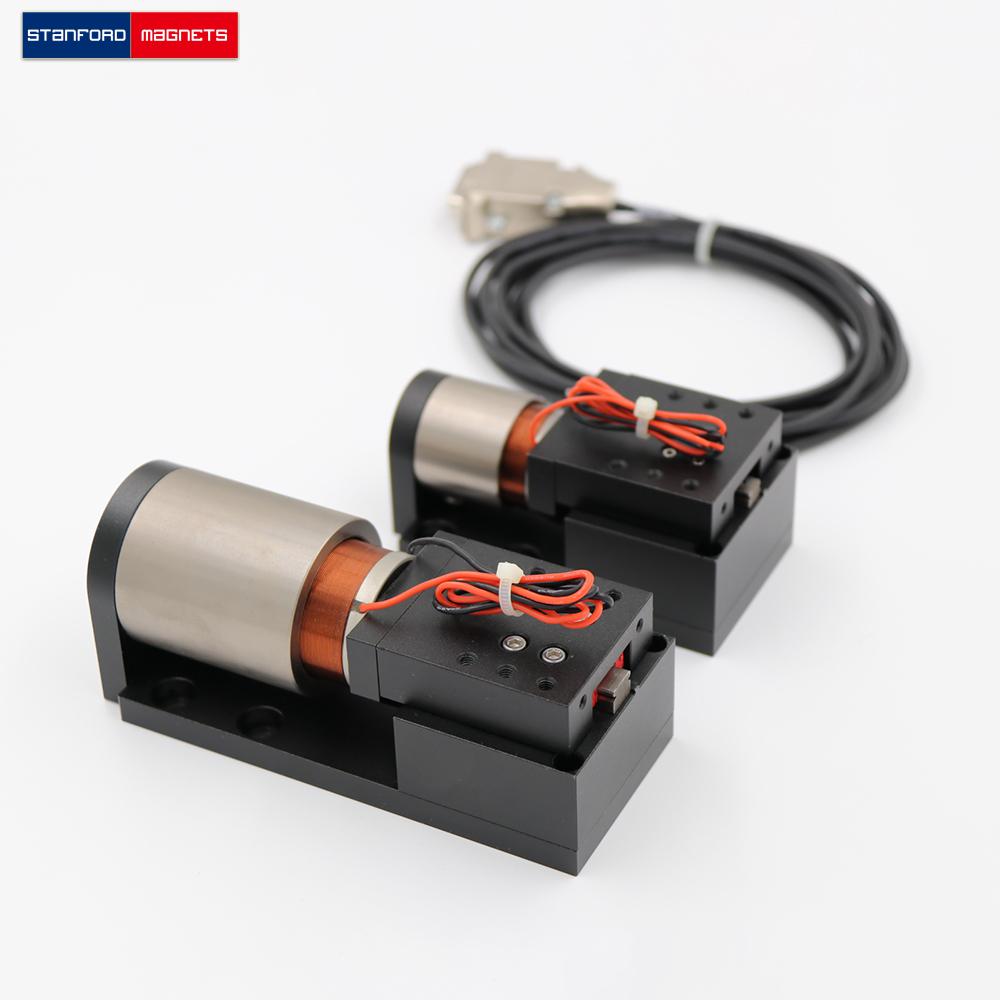

SMON6140 Magnetic Levitation Voice Coil Motor TMPT-VC-0050-025-000-C

Magnetic Levitation Voice Coil Motor Introduction

Magnetic Levitation Voice Coil Motor delivers lightweight, fast-response, high-speed, and high-acceleration performance. Constructed with premium magnetic steel and carefully selected materials, it ensures stable thrust characteristics and superior thrust capability. The VCM platform is precision-machined from aerospace-grade aluminum, offering outstanding rigidity and stability. This cylindrical voice coil motor can generate peak thrust up to 50N, with continuous thrust of 15N and a maximum stroke of 25mm. The stroke frequency can be tailored to meet specific customer requirements. When paired with the appropriate encoder and rail configuration, repeatability accuracy can reach as high as 0.1μm. Customization options are available to suit various application needs. For more detailed structural diagrams of the voice coil motor platform, please click to learn more.

Related products:

Magnetic Levitation Voice Coil Motor TMPT-VC-0010-010-000-C

Magnetic Levitation Voice Coil Motor TMPT-VC-0030-010-000-C

Magnetic Levitation Voice Coil Motor TMPT-VC-0044-006-000-C

Magnetic Levitation Voice Coil Motor Specification

Magnetic Levitation Voice Coil Motor Applications

• Precision Positioning Systems:

Ideal for optical systems such as autofocus mechanisms in cameras or microscopes, where quick response and high precision are needed.

• High-Speed Actuators:

Used in robotics and automated systems, where high-speed and high-acceleration motion is required for tasks such as assembly, part handling, and precise movements.

• Medical Equipment:

Suitable for robotic surgery systems, providing smooth and precise motion for surgical instruments.

Also used in hearing aids and therapeutic devices that require small, precise movements.

• Aerospace & Satellite Applications:

Utilized in satellite positioning systems and aerospace components where high thrust and stability are critical for moving or adjusting satellite parts and equipment.

FAQs

Q1: What is a Magnetic Levitation Voice Coil Motor?

A Magnetic Levitation Voice Coil Motor (VCM) is a high-performance motor that uses magnetic levitation to eliminate physical contact between moving parts, reducing friction and wear. It offers fast-response, high-speed, and high-acceleration performance, making it ideal for precision applications that require smooth and precise motion control.

Q2: What are the advantages of using a Magnetic Levitation Voice Coil Motor?

• Low Friction: Magnetic levitation eliminates physical contact, reducing friction and wear, resulting in higher efficiency and longer lifespan.
• High Speed & Acceleration: The motor offers fast-response, high-speed, and high-acceleration capabilities, making it suitable for dynamic and demanding applications.
• Precision: With the right configuration, it offers extremely high repeatability and accuracy, which is essential for precision tasks.
• Customizable Stroke Frequency: The motor’s stroke frequency and thrust capabilities can be tailored to meet specific application requirements.

Q3: Can the stroke frequency be customized?

Yes, the stroke frequency of the Magnetic Levitation Voice Coil Motor can be customized according to the specific needs of your application. Customization options are available to optimize performance based on your requirements.
