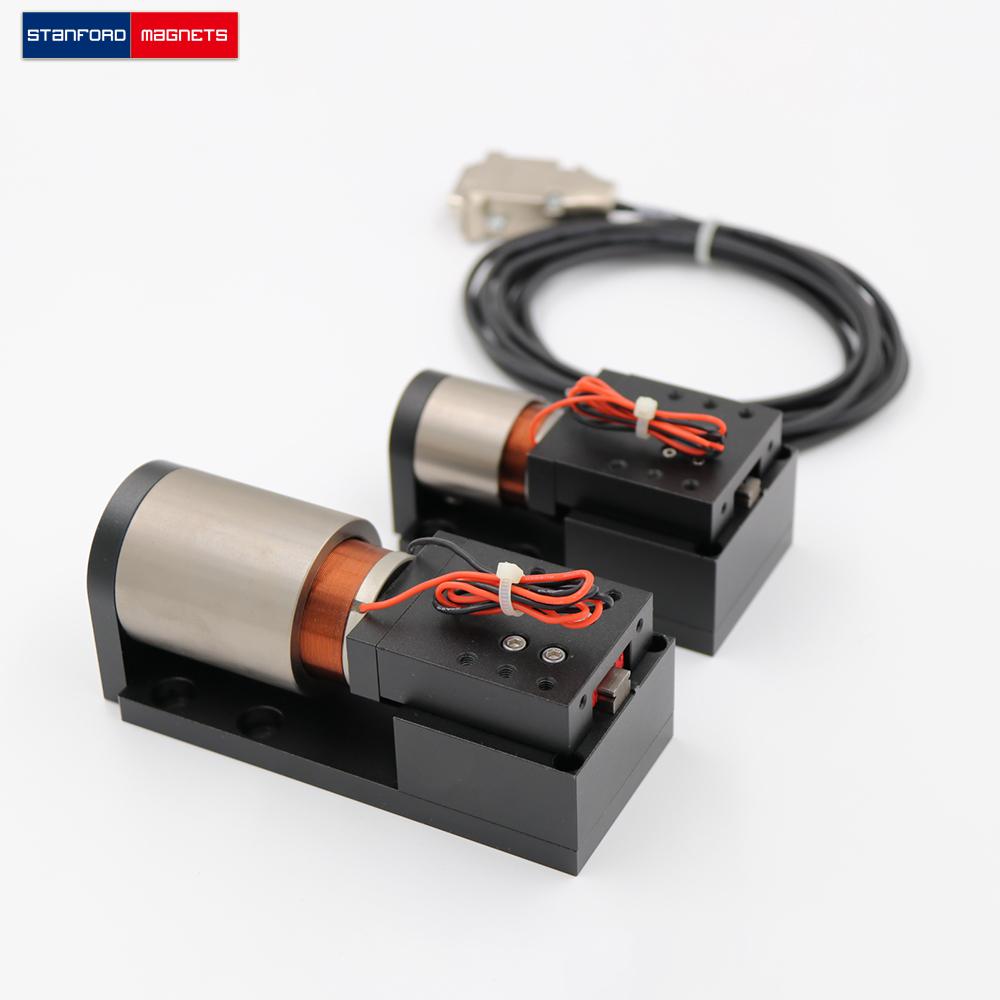

SMON6141 Magnetic Levitation Voice Coil Motor TMPT-VC-0070-015-000-C

Magnetic Levitation Voice Coil Motor Introduction

Magnetic Levitation Voice Coil Motor offers lightweight, fast-response, high-speed, and high-acceleration performance. Made with premium magnetic steel and carefully selected materials, it ensures stable thrust characteristics and superior thrust capability. The VCM platform is precision-machined from aerospace-grade aluminum, providing excellent rigidity and stability. This cylindrical voice coil motor can generate peak thrust up to 70N, with continuous thrust of 15N and a maximum stroke of 15mm. The stroke frequency can be customized to meet specific customer requirements. With the appropriate encoder and rail configuration, repeatability accuracy can reach up to 0.1μm.

Related products:

Magnetic Levitation Voice Coil Motor TMPT-VC-0010-010-000-C

Magnetic Levitation Voice Coil Motor TMPT-VC-0030-010-000-C

Magnetic Levitation Voice Coil Motor TMPT-VC-0044-006-000-C

Magnetic Levitation Voice Coil Motor Specification

Magnetic Levitation Voice Coil Motor Applications

• Precision Positioning Systems:

Perfect for optical systems like autofocus mechanisms in cameras or microscopes, where fast response and high precision are essential for accurate adjustments.

• High-Speed Actuators:

Used in robotics and automated systems, where high-speed, high-acceleration motion is required for tasks such as assembly, part handling, and precise movements.

• Medical Equipment:

Ideal for robotic surgery systems, enabling smooth and precise motion for surgical instruments. It is also used in hearing aids and therapeutic devices that require small, accurate movements.

• Aerospace & Satellite Applications:

Applied in satellite positioning systems and aerospace components, where high thrust and stability are crucial for adjusting satellite parts and equipment with precision.

FAQs

Q1: What is a Magnetic Levitation Voice Coil Motor?

A Magnetic Levitation Voice Coil Motor (VCM) is a high-performance motor that utilizes magnetic levitation to eliminate physical contact between moving parts, minimizing friction and wear. This results in a fast-response, high-speed, and high-acceleration performance, making it ideal for precision applications requiring smooth, accurate motion control.

Q2: What are the advantages of using a Magnetic Levitation Voice Coil Motor?

Low Friction: Magnetic levitation removes physical contact, reducing friction and wear, leading to higher efficiency and longer motor life.

High Speed & Acceleration: The motor provides fast-response, high-speed, and high-acceleration capabilities, making it well-suited for dynamic and demanding applications.

Precision: With the right setup, the motor offers extremely high repeatability and accuracy, making it perfect for precision tasks.

Customizable Stroke Frequency: The stroke frequency and thrust capabilities can be customized to meet the specific needs of different applications.

Q3: Can the stroke frequency be customized?

Yes, the stroke frequency of the Magnetic Levitation Voice Coil Motor can be tailored according to the specific requirements of your application. Customization options are available to optimize the motor’s performance to best suit your needs.
