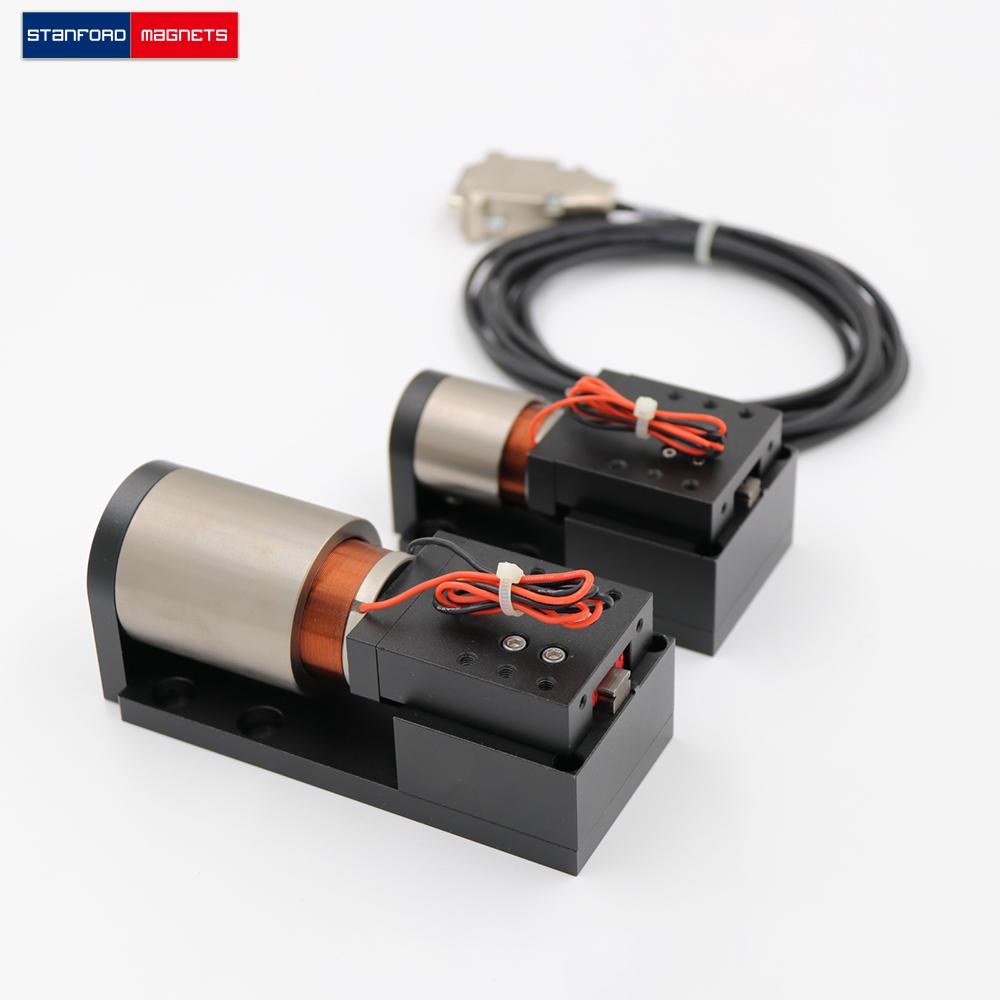

SMON6142 Magnetic Levitation Voice Coil Motor TMPT-VC-0075-020-000-C

Magnetic Levitation Voice Coil Motor Introduction

Magnetic Levitation Voice Coil Motor delivers lightweight, fast-response, high-speed, and high-acceleration performance. Constructed from high-quality magnetic steel and carefully selected materials, it ensures stable thrust characteristics and outstanding thrust capability. The VCM platform is precision-machined from aerospace-grade aluminum, offering superior rigidity and stability. This cylindrical voice coil motor can achieve a peak thrust of up to 75N, with a continuous thrust of 21.8N and a maximum stroke of 20mm. The stroke frequency can be tailored to meet specific customer requirements, and with the right encoder and rail configuration, repeatability accuracy can reach as high as 0.1μm.

Related products:

Magnetic Levitation Voice Coil Motor TMPT-VC-0010-010-000-C

Magnetic Levitation Voice Coil Motor TMPT-VC-0030-010-000-C

Magnetic Levitation Voice Coil Motor TMPT-VC-0044-006-000-C

Magnetic Levitation Voice Coil Motor Specification

Magnetic Levitation Voice Coil Motor Applications

• Precision Positioning Systems:

Ideal for optical systems such as autofocus mechanisms in cameras or microscopes, where rapid response and high precision are critical for accurate adjustments.

• High-Speed Actuators:

Used in robotics and automated systems that require high-speed and high-acceleration motion for tasks like assembly, part handling, and precise movements.

• Medical Equipment:

Perfect for robotic surgery systems, offering smooth, precise motion for surgical instruments. It's also used in hearing aids and therapeutic devices that require small, accurate movements.

• Aerospace & Satellite Applications:

Utilized in satellite positioning systems and aerospace components, where high thrust and stability are essential for adjusting satellite parts and equipment with precision.

FAQs

Q1: What is a Magnetic Levitation Voice Coil Motor?

A Magnetic Levitation Voice Coil Motor (VCM) is a high-performance motor that uses magnetic levitation to eliminate physical contact between moving parts, reducing friction and wear. This design results in fast-response, high-speed, and high-acceleration performance, making it ideal for precision applications that require smooth and accurate motion control.

Q2: What are the advantages of using a Magnetic Levitation Voice Coil Motor?

• Low Friction: The absence of physical contact through magnetic levitation reduces friction and wear, leading to improved efficiency and a longer motor lifespan.
• High Speed & Acceleration: The motor offers rapid response, high-speed, and high-acceleration performance, making it perfect for dynamic and demanding tasks.
• Precision: With proper setup, the motor provides exceptional repeatability and accuracy, ideal for applications requiring precision.
• Customizable Stroke Frequency: The stroke frequency and thrust capabilities can be adjusted to meet the specific needs of various applications.

Q3: Can the stroke frequency be customized?

Yes, the stroke frequency of the Magnetic Levitation Voice Coil Motor can be customized according to your application's specific needs. Customization options are available to fine-tune the motor’s performance for optimal results.
