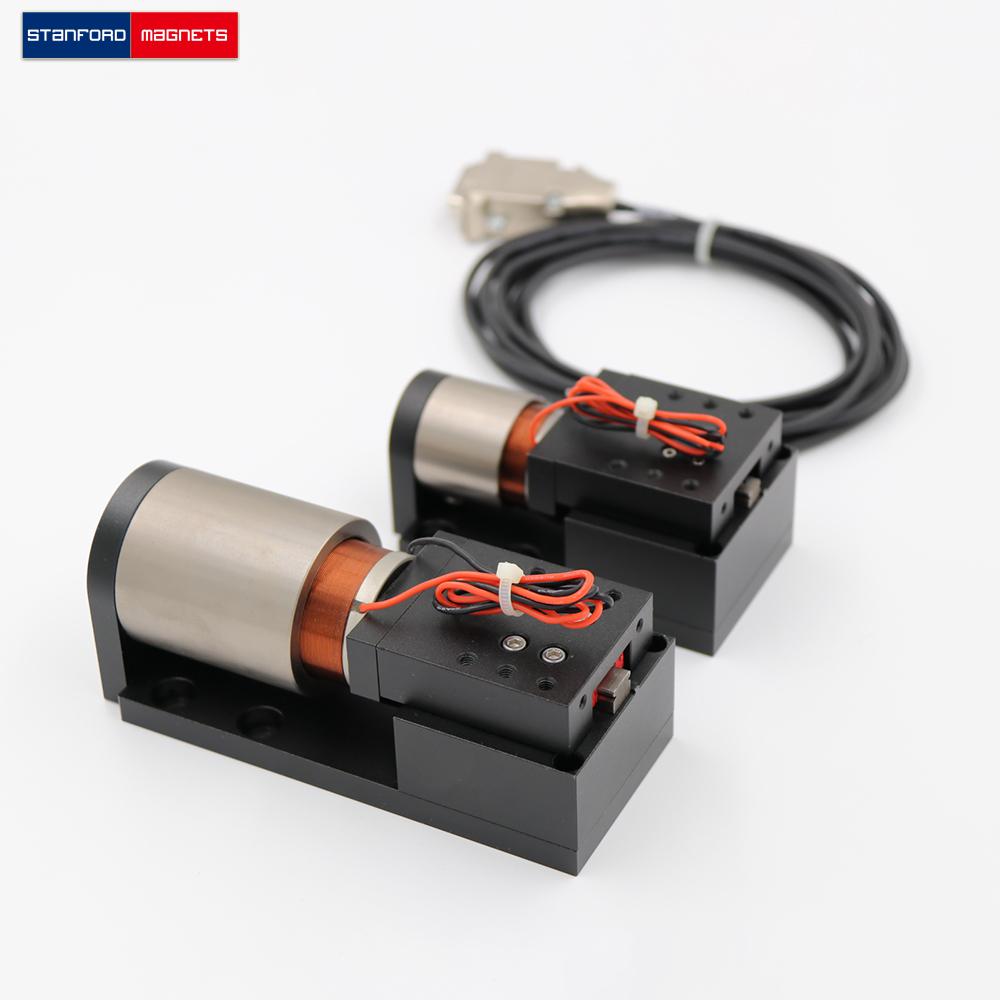

Magnetic Levitation Voice Coil Motor offers lightweight, fast-response, high-speed, and high-acceleration performance. Made from premium magnetic steel and carefully selected materials, it provides stable thrust characteristics and exceptional thrust capability. The VCM platform is precision-machined from aerospace-grade aluminum, ensuring superior rigidity and stability. This cylindrical voice coil motor can generate a peak thrust of up to 90N, with a continuous thrust of 45.4N and a maximum stroke of 10mm. The stroke frequency can be customized to meet specific customer requirements, and with the right encoder and rail configuration, repeatability accuracy can reach up to 0.1μm.
Related products:
Magnetic Levitation Voice Coil Motor TMPT-VC-0010-010-000-C
Magnetic Levitation Voice Coil Motor TMPT-VC-0030-010-000-C
Magnetic Levitation Voice Coil Motor TMPT-VC-0044-006-000-C
|
Rated Performance |
||
|
Total Stroke |
mm |
10.0 |
|
Peak Force |
N |
90.0 |
|
Continuous Force @ 120℃ |
N |
45.4 |
|
Peak Voltage |
V |
43.6 |
|
Peak Current |
A |
2.3 |
|
Motor Model |
- |
TMEC0090-010-000 |
|
Encoder Resolution |
um |
0.05/0.1/0.5/1 |
|
Repeatability Accuracy |
um |
0.5/1/5/10 |
|
Linearity |
um |
±2.5 |
|
Flatness |
um |
±2.5 |
|
Unloaded Moving Mass |
kg |
0.10 |
|
Unloaded Total Weight |
kg |
0.5 |
Ideal for optical systems such as autofocus mechanisms in cameras or microscopes, where fast response and high precision are crucial for precise adjustments.
Used in robotics and automated systems that require rapid, high-acceleration motion for tasks such as assembly, part handling, and accurate movements.
Perfect for robotic surgery systems, providing smooth and precise motion for surgical instruments. Also used in hearing aids and therapeutic devices that demand small, precise movements.
Applied in satellite positioning systems and aerospace components, where high thrust and stability are critical for the precise adjustment of satellite parts and equipment.
Q1: What is a Magnetic Levitation Voice Coil Motor?
A Magnetic Levitation Voice Coil Motor (VCM) is a high-performance motor that utilizes magnetic levitation to eliminate physical contact between moving parts, reducing friction and wear. This technology enables fast-response, high-speed, and high-acceleration performance, making it ideal for precision applications that require smooth, accurate motion control.
Q2: What are the advantages of using a Magnetic Levitation Voice Coil Motor?
Low Friction: By using magnetic levitation to avoid physical contact, friction and wear are significantly reduced, leading to improved efficiency and a longer motor lifespan.
High Speed & Acceleration: The motor delivers rapid response, high-speed, and high-acceleration performance, making it suitable for dynamic and demanding applications.
Precision: When properly configured, the motor offers exceptional repeatability and accuracy, making it ideal for tasks requiring high precision.
Customizable Stroke Frequency: The motor’s stroke frequency and thrust capabilities can be adjusted to meet the specific needs of various applications.
Q3: Can the stroke frequency be customized?
Yes, the stroke frequency of the Magnetic Levitation Voice Coil Motor can be tailored to meet the specific requirements of your application. Customization options are available to optimize the motor's performance for your unique needs.
