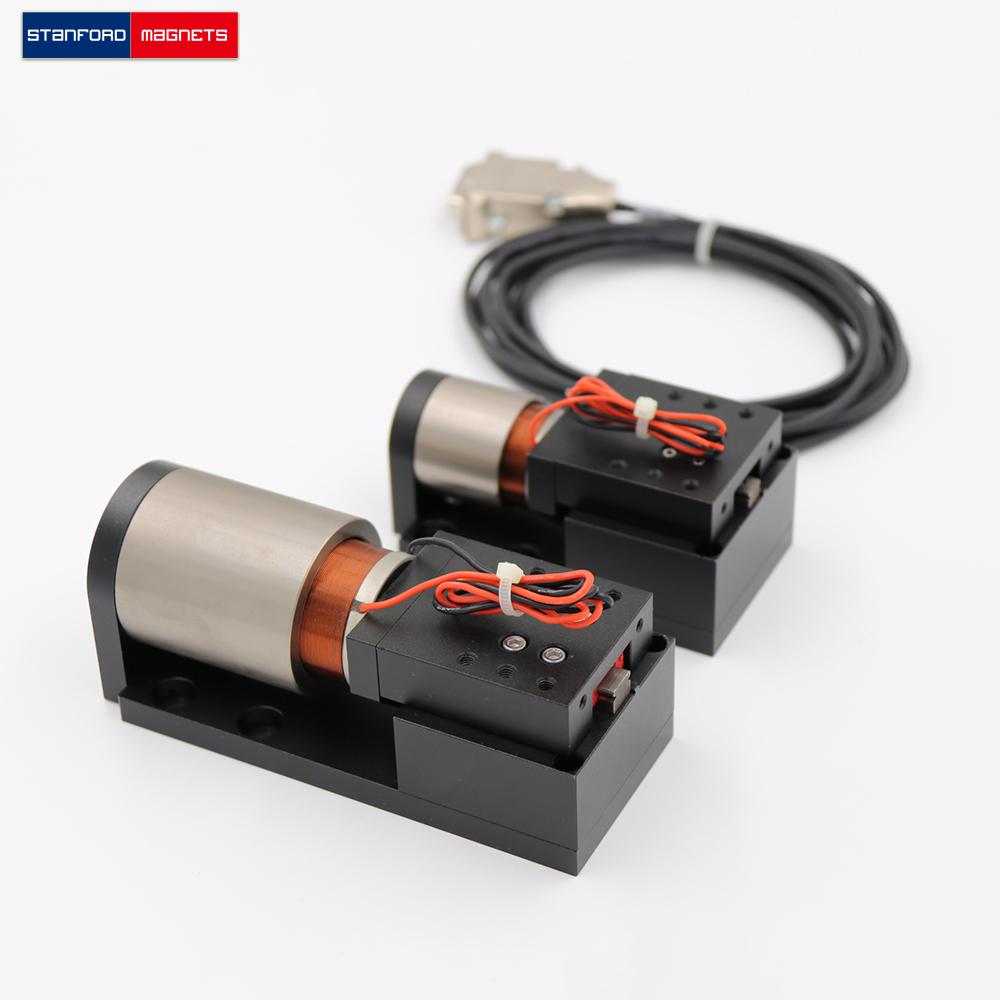

SMON6146 Magnetic Levitation Voice Coil Motor TMPT-VC-0250-025-000-C

Magnetic Levitation Voice Coil Motor Introduction

Magnetic Levitation Voice Coil Motor delivers lightweight, fast-response, high-speed, and high-acceleration performance. Made from premium magnetic steel and carefully chosen materials, it ensures consistent thrust characteristics and outstanding thrust capability. The VCM platform is precision-machined from aerospace-grade aluminum, providing exceptional rigidity and stability. This cylindrical voice coil motor can achieve a peak thrust of up to 250N, with a continuous thrust of 115N and a maximum stroke of 25mm. The stroke frequency can be tailored to meet specific customer requirements, and with the right encoder and rail configuration, repeatability accuracy can reach up to 0.1μm.

Related products:

Magnetic Levitation Voice Coil Motor TMPT-VC-0010-010-000-C

Magnetic Levitation Voice Coil Motor TMPT-VC-0030-010-000-C

Magnetic Levitation Voice Coil Motor TMPT-VC-0044-006-000-C

Magnetic Levitation Voice Coil Motor Specification

Magnetic Levitation Voice Coil Motor Applications

• Precision Positioning Systems:

Ideal for optical systems, such as autofocus mechanisms in cameras or microscopes, where quick response and high precision are crucial for accurate adjustments.

• High-Speed Actuators:

Used in robotics and automated systems that require rapid, high-acceleration motion for tasks such as assembly, part handling, and precise movements.

• Medical Equipment:

Perfect for robotic surgery systems, providing smooth and accurate motion for surgical instruments. Also utilized in hearing aids and therapeutic devices that require small, precise movements.

• Aerospace & Satellite Applications:

Applied in satellite positioning systems and aerospace components, where high thrust and stability are vital for adjusting satellite parts and equipment with precision.

FAQs

Q1: What is a Magnetic Levitation Voice Coil Motor?

A Magnetic Levitation Voice Coil Motor (VCM) is a high-performance motor that uses magnetic levitation to eliminate physical contact between moving parts, reducing friction and wear. This innovative technology enables fast-response, high-speed, and high-acceleration performance, making it perfect for precision applications that require smooth, accurate motion control.

Q2: What are the advantages of using a Magnetic Levitation Voice Coil Motor?

Low Friction: By eliminating physical contact through magnetic levitation, friction and wear are significantly reduced, leading to increased efficiency and a longer motor lifespan.

High Speed & Acceleration: The motor offers fast-response, high-speed, and high-acceleration capabilities, making it ideal for dynamic, high-demand applications.

Precision: With the right configuration, the motor delivers exceptional repeatability and accuracy, making it suitable for applications requiring precise motion control.

Customizable Stroke Frequency: The stroke frequency and thrust capabilities can be tailored to meet the specific needs of different applications.

Q3: Can the stroke frequency be customized?

Yes, the stroke frequency of the Magnetic Levitation Voice Coil Motor can be customized to meet the exact needs of your application. Customization options are available to optimize the motor’s performance to your specific requirements.
