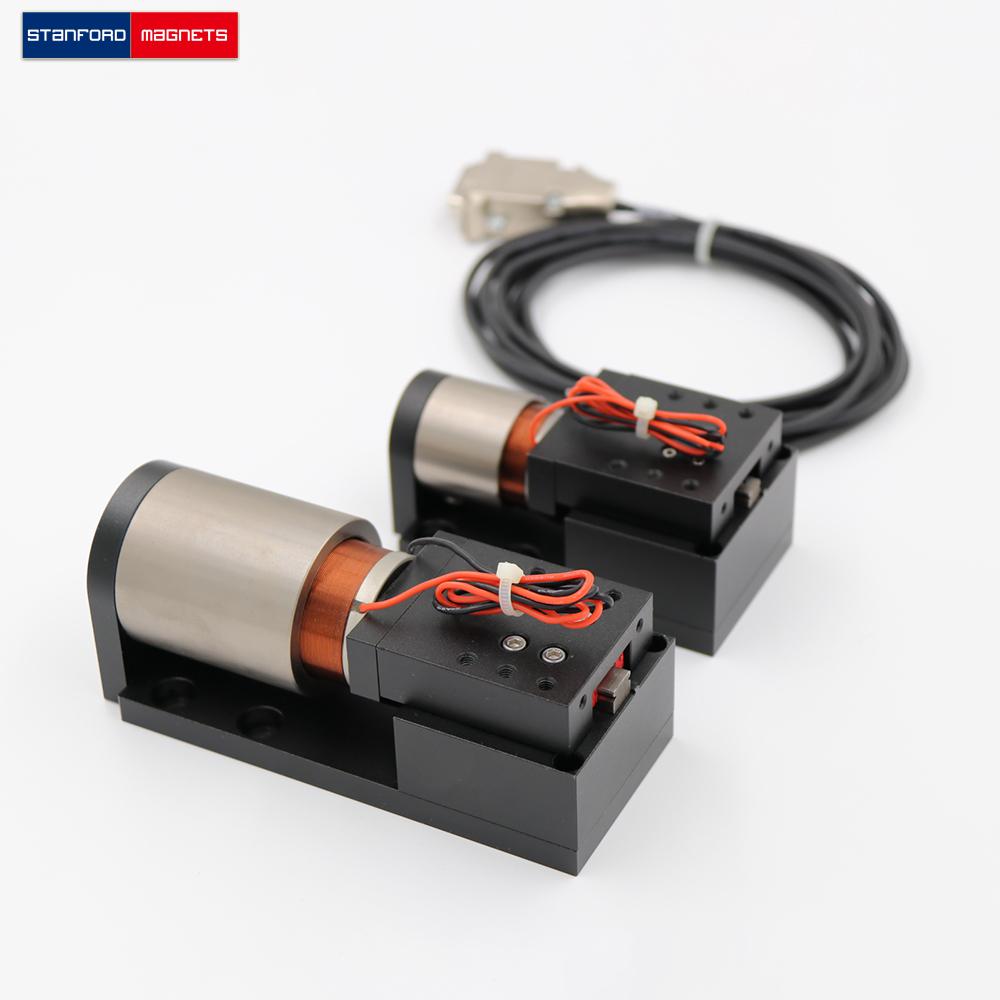

SMON6150 Magnetic Levitation Voice Coil Motor TMPT-VC-0390-013-000-C

Magnetic Levitation Voice Coil Motor Introduction

Magnetic Levitation Voice Coil Motor delivers a lightweight design, rapid response, high-speed operation, and exceptional acceleration capabilities. Constructed from high-quality magnetic steel and carefully chosen materials, it guarantees reliable thrust performance and outstanding thrust capabilities. The VCM platform is precisely crafted from aerospace-grade aluminum, offering superior rigidity and stability. This cylindrical voice coil motor can produce a peak thrust of up to 390N, with continuous thrust reaching 174.6N and a maximum stroke of 13mm. The stroke frequency is customizable to suit specific customer needs, and with the right encoder and rail configuration, repeatability accuracy can reach as high as 0.1μm.

Related products:

Magnetic Levitation Voice Coil Motor TMPT-VC-0010-010-000-C

Magnetic Levitation Voice Coil Motor TMPT-VC-0030-010-000-C

Magnetic Levitation Voice Coil Motor TMPT-VC-0044-006-000-C

Magnetic Levitation Voice Coil Motor Specification

Magnetic Levitation Voice Coil Motor Applications

• Precision Positioning Systems:

Designed for optical systems like autofocus mechanisms in cameras or microscopes, where quick response and exceptional precision are crucial for accurate adjustments.

• High-Speed Actuators:

Ideal for robotics and automated systems that require fast, high-acceleration motion for tasks such as assembly, part handling, and intricate movements.

• Medical Equipment:

Perfect for robotic surgery systems, delivering smooth, precise motion for surgical instruments. It is also used in hearing aids and therapeutic devices that need small, accurate movements.

• Aerospace & Satellite Applications:

Utilized in satellite positioning systems and aerospace components, where high thrust and stability are essential for the precise adjustment of satellite parts and equipment.

FAQs

Q1: What is a Magnetic Levitation Voice Coil Motor?

A Magnetic Levitation Voice Coil Motor (VCM) is a high-performance motor that leverages magnetic levitation to eliminate physical contact between moving components, reducing friction and wear. This advanced technology enables fast response, high-speed operation, and high-acceleration performance, making it well-suited for precision applications where smooth and accurate motion control is essential.

Q2: What are the advantages of using a Magnetic Levitation Voice Coil Motor?

• Low Friction: By utilizing magnetic levitation, the motor eliminates physical contact, significantly reducing friction and wear, leading to enhanced efficiency and a longer motor lifespan.
• High Speed & Acceleration: The motor delivers fast response, high-speed, and high-acceleration performance, making it ideal for demanding, high-dynamics applications.
• Precision: With proper configuration, the motor provides exceptional repeatability and accuracy, making it perfect for applications requiring precise motion control.
• Customizable Stroke Frequency: The stroke frequency and thrust capabilities are adjustable to meet the specific requirements of various applications.

Q3: Can the stroke frequency be customized?

Yes, the stroke frequency of the Magnetic Levitation Voice Coil Motor can be customized to align with the specific needs of your application. There are options available to tailor the motor’s performance to optimize it for your unique requirements.
