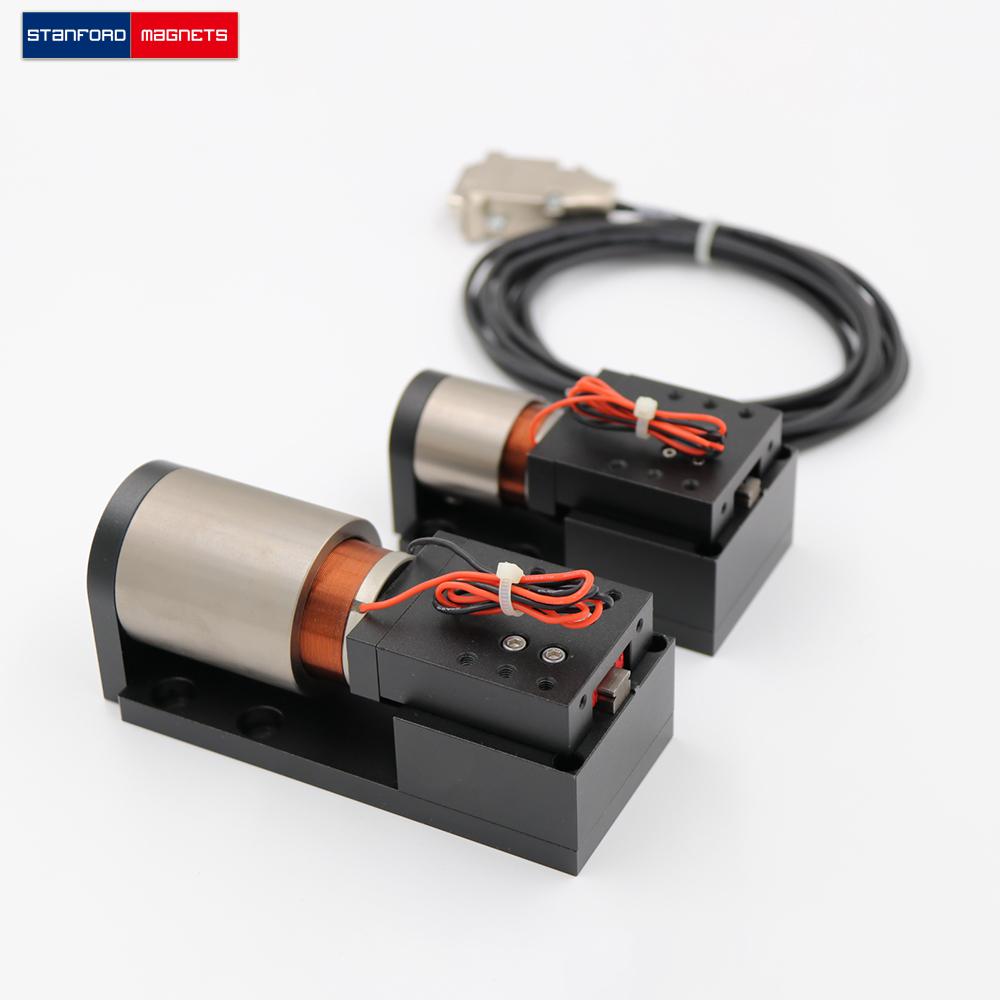

SMON6151 Magnetic Levitation Voice Coil Motor TMPT-VC-0400-025-000-C

Magnetic Levitation Voice Coil Motor Introduction

Magnetic Levitation Voice Coil Motor features a lightweight structure, swift response, high-speed functionality, and exceptional acceleration performance. Built with premium magnetic steel and carefully selected materials, it ensures stable thrust output and superior thrust capacity. The VCM platform is expertly engineered from aerospace-grade aluminum, providing outstanding rigidity and durability. This cylindrical voice coil motor can achieve a peak thrust of up to 400N, with a continuous thrust of 170N and a maximum stroke of 25mm. The stroke frequency can be customized to meet specific customer requirements, and with an optimized encoder and rail system, repeatability accuracy can reach up to 0.1μm.

Related products:

Magnetic Levitation Voice Coil Motor TMPT-VC-0010-010-000-C

Magnetic Levitation Voice Coil Motor TMPT-VC-0030-010-000-C

Magnetic Levitation Voice Coil Motor TMPT-VC-0044-006-000-C

Magnetic Levitation Voice Coil Motor Specification

Magnetic Levitation Voice Coil Motor Applications

• Precision Positioning Systems:

Optimized for optical applications such as autofocus mechanisms in cameras and microscopes, where rapid response and high precision are essential for accurate adjustments.

• High-Speed Actuators:

Well-suited for robotics and automated systems requiring swift, high-acceleration motion for tasks like assembly, part handling, and precise movements.

• Medical Equipment:

Ideal for robotic surgery systems, ensuring smooth and precise motion for surgical instruments. Also applied in hearing aids and therapeutic devices that demand small, accurate movements.

• Aerospace & Satellite Applications:

Employed in satellite positioning systems and aerospace components, where high thrust and stability are critical for the precise positioning of satellite parts and equipment.

FAQs

Q1: What is a Magnetic Levitation Voice Coil Motor?

A Magnetic Levitation Voice Coil Motor (VCM) is a high-performance motor that utilizes magnetic levitation to eliminate physical contact between moving parts, minimizing friction and wear. This cutting-edge technology enables rapid response, high-speed operation, and exceptional acceleration, making it ideal for precision applications that require smooth and accurate motion control.

Q2: What are the advantages of using a Magnetic Levitation Voice Coil Motor?

• Low Friction: By eliminating physical contact through magnetic levitation, the motor significantly reduces friction and wear, improving efficiency and extending its lifespan.
• High Speed & Acceleration: Engineered for rapid response and high acceleration, this motor is well-suited for demanding, high-dynamic applications.
• Precision: With the right configuration, it delivers outstanding repeatability and accuracy, making it perfect for applications that require precise motion control.
• Customizable Stroke Frequency: The stroke frequency and thrust parameters can be adjusted to meet specific application requirements.

Q3: Can the stroke frequency be customized?

Yes, the stroke frequency of the Magnetic Levitation Voice Coil Motor can be tailored to match your specific application needs. Customization options allow for optimized motor performance based on unique operational requirements.
