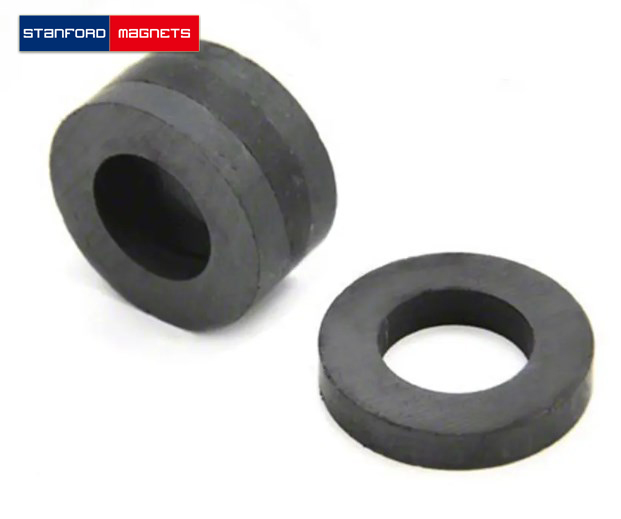

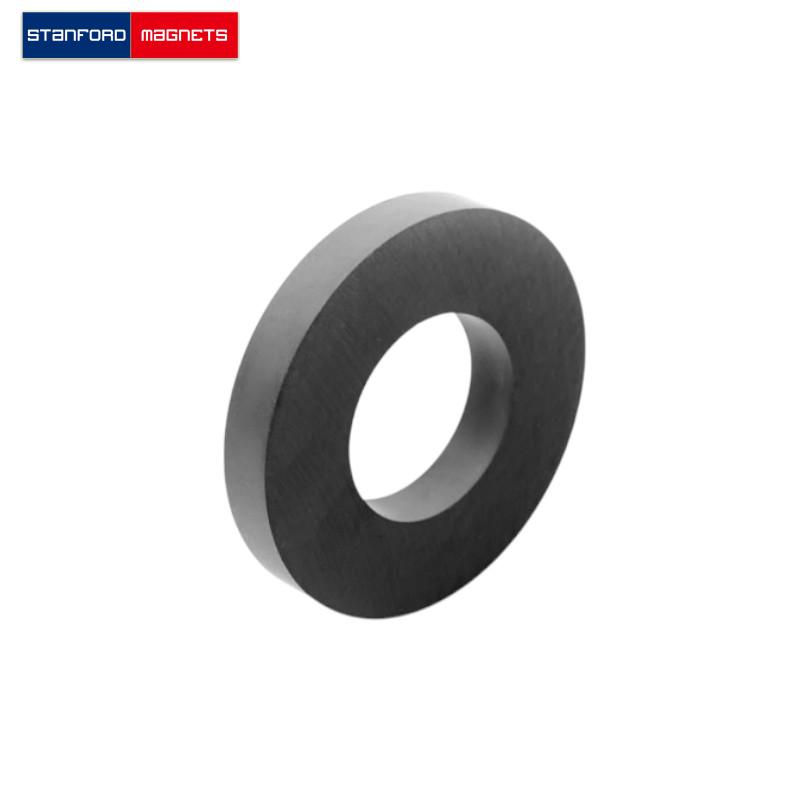

SMRC0059 Ceramic/Ferrite Ring Magnet

Product ID: SMRC0059
Material: Ferrite
Shape: Ring
Dimension: 32mm O.D x 18mm I.D x 5.5mm Thickness
Grade: C8
Coating: Magnets Requiring no Protective Coating
Magnetization Direction: Through Thickness
Magnetic Face: 32mm O.D x 18mm I.D

INQUIRY Can't Find The Size

Follow Us On


Description

The SMRC0059 Ceramic Ferrite Ring Magnet is made from high-performance C8 Ferrite, without other protective coating. The dimension of this item is 32mm O.D x 18mm I.D x 5.5mm thickness, magnetized through thickness. It can pull up to 1 lbs steel.

SMRC0059 CERAMIC/FERRITE RING MAGNET APPLICATION

DC motors, Louder-speaks, Magnetic Separators, Automotive Sensors, Education, etc.

Ammeter, speaker, audio, phone, TV, dynamo, Used in cars, etc

SMRC0059 CERAMIC/FERRITE RING MAGNET CHARACTERISTICS

* Low cost, high-energy, good electric insulation, and excellent resistance to demagnetization.

* High coercive force, high electric resistance, long-time stability, and economical price.
