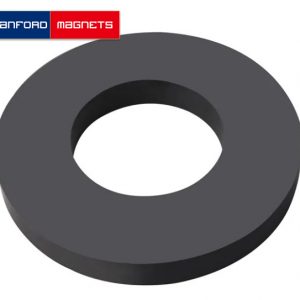

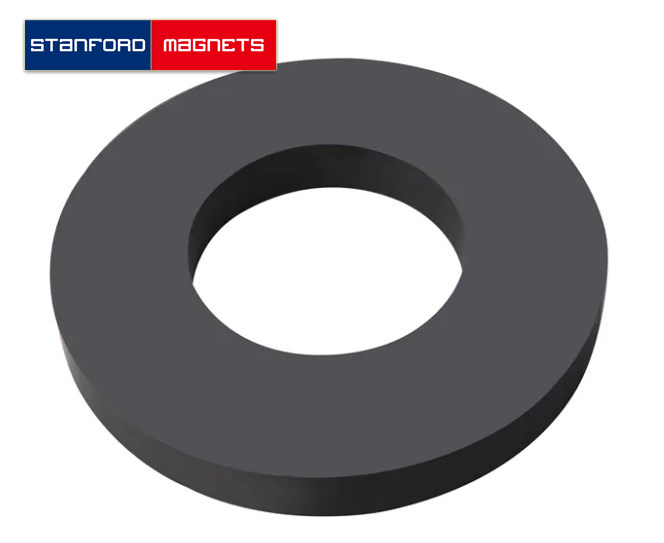

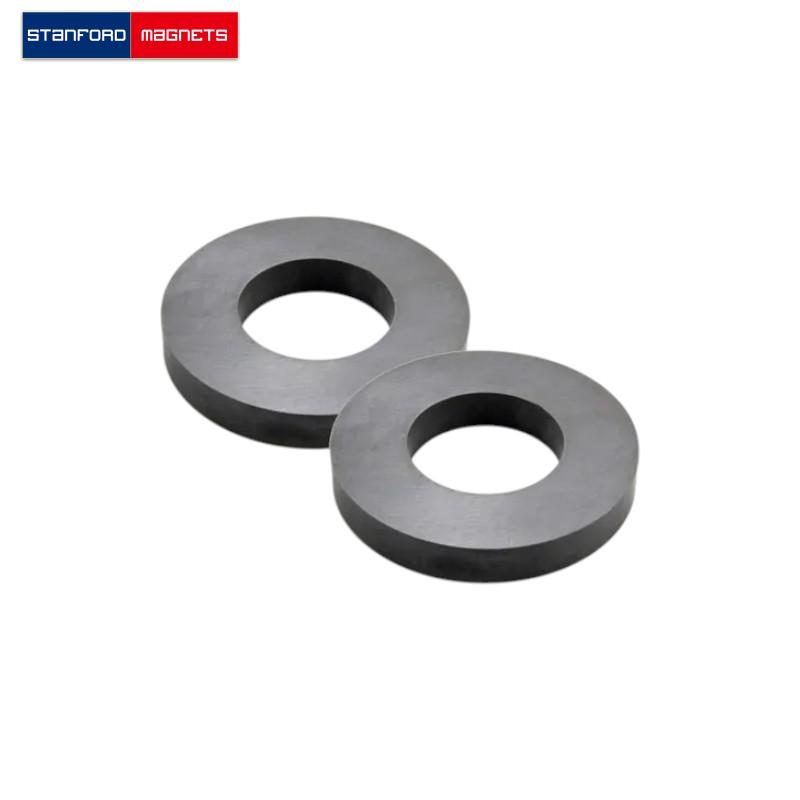

SMRC0062 Ceramic/Ferrite Ring Magnet DESCRIPTION
The SMRC0062 Ceramic/Ferrite Ring Magnet is made from high-performance C8 Ferrite, without other protective coatings. The dimension of this item is 72mm O.D x 30mm I.D x 12mm thickness, magnetized through thickness. It can pull up to 6.4 lbs of steel. And the surface field is up to 800 gauss.
SMRC0062 CERAMIC/FERRITE RING MAGNET APPLICATION
DC motors, Louder-speaks, Magnetic Separators, Automotive Sensors, Education, etc.
Ammeter, speaker, audio, phone, TV, dynamo, Used in cars, etc
SMRC0062 CERAMIC/FERRITE RING MAGNET CHARACTERISTICS
* Low cost, high-energy, good electric insulation, and excellent resistance to demagnetization.
* High coercive force, high electric resistance, long-time stability, and economical price.
Download a PDF Specification Sheet
