SMRC0064 Ceramic/Ferrite Ring Magnet | Stanford Magnets

SMRC0064 Ceramic/Ferrite Ring Magnet

Product ID: SMRC0064
Material: Ferrite
Shape: Ring
Dimension: 100mm O.D x 50mm I.D x 12mm Thickness
Grade: C8
Coating: Magnets Requiring no Protective Coating
Surface Field(Gauss): 600
Magnetization Direction: Through Thickness
Magnetic Face: 100mm O.D x 50mm I.D

INQUIRY Can't Find The Size

Follow Us On


Description

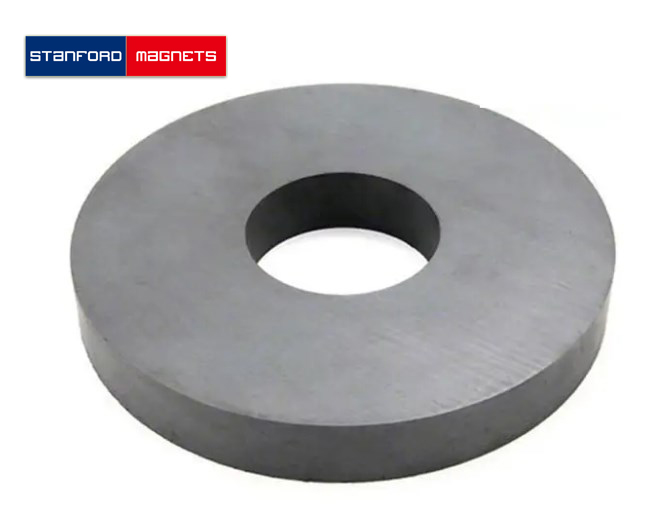

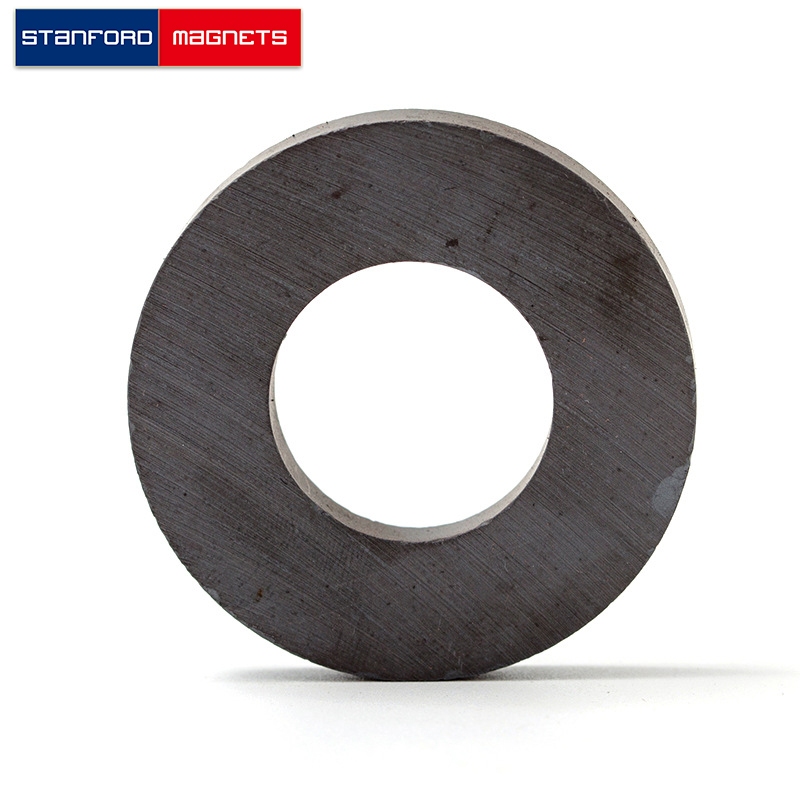

SMRC0064 Ceramic/Ferrite Ring Magnet DESCRIPTION

The SMRC0064 Ceramic/Ferrite Ring Magnet is made from high-performance C8 Ferrite, without other protective coatings. The dimension of this item is 100mm O.D * 50mm I.D * 12mm Thickness, magnetized through thickness. It can pull up to 9 lbs of steel. And the surface field is up to 600 gausses.

SMRC0064 CERAMIC/FERRITE RING MAGNET APPLICATION

DC motors, Louder-speaks, Magnetic Separators, Automotive Sensors, Education, etc.

Ammeter, speaker, audio, phone, TV, dynamo, Used in cars, etc

SMRC0064 CERAMIC/FERRITE RING MAGNET CHARACTERISTICS

* Low cost, high-energy, good electric insulation, and excellent resistance to demagnetization.

* High coercive force, high electric resistance, long-time stability, and economical price.
