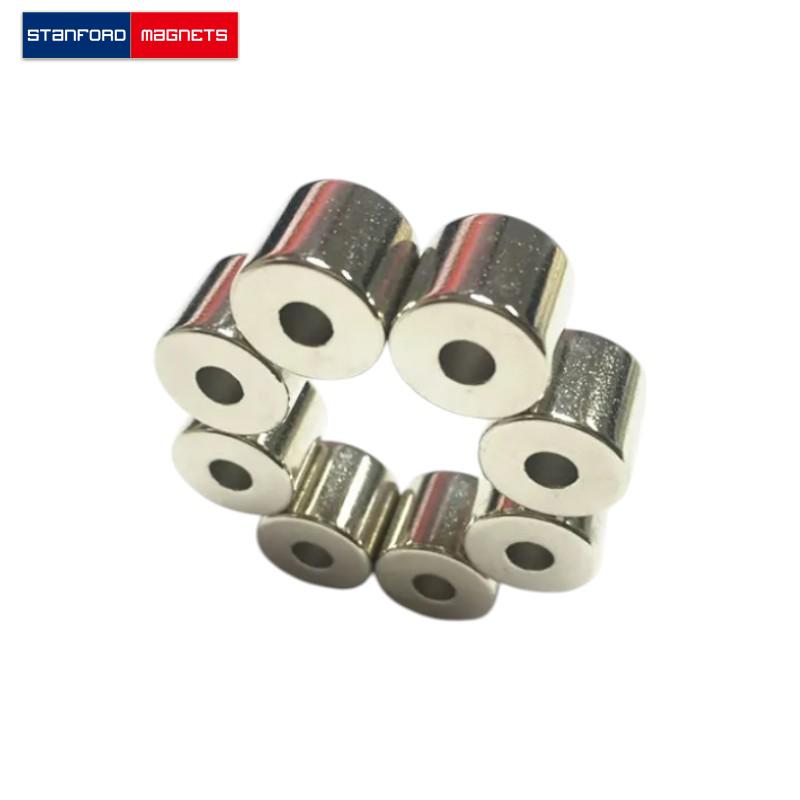

SMRN0655 Neodymium RING Magnet

The SMRN0655 RING neodymium magnet is made from high performance N42 NdFeB, with Nickel coating. The dimension of this item is 1/4″ od × 1/8″ id × 1/4″ thick, magnetized Diametrical, with tolerance of ±0.004″ × ±0.004″ × ±0.004″. The weight of this super strong neodymium magnet is 0.00249375 lbs. It can pull up to 1.36 lbs steel. And the surface field is up to 5299 gauss.

INQUIRY Can't Find The Size

Follow Us On


Description

Product ID: SMRN0655
Material: NdFeB
Shape: Ring
Dimension: 1/4” od x 1/8” id x 1/4” thick
Tolerances: ±0.004″ x ±0.004″ x ±0.004″
Weight(Oz.): 0.04
Grade: N42
Coating: Nickel Coated Magnets
Pull Force(Lbs): 1.36
Surface Field(Gauss): 5299
Magnetization direction: Diametrical
Max Operating Temp(C/F): 80/176
