SMRN0656 Neodymium RING Magnet

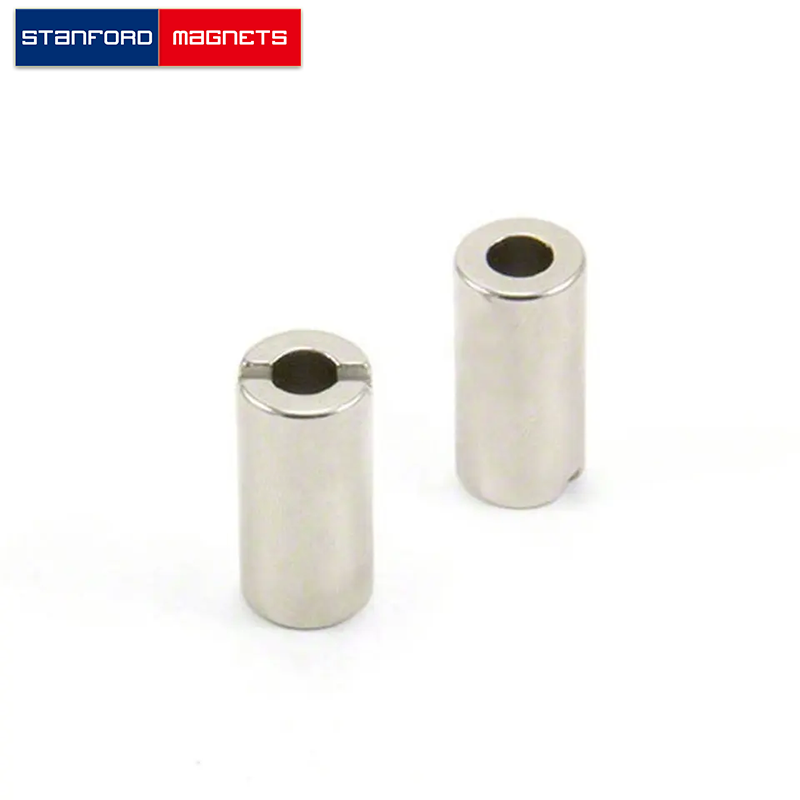

The SMRN0656 RING neodymium magnet is made from high performance N42 NdFeB, with Nickel coating. The dimension of this item is 1/4″ od × 1/8″ id × 1/2″ thick, magnetized Through Thickness, with tolerance of ±0.004″ × ±0.004″ × ±0.004″. The weight of this super strong neodymium magnet is 0.0049875 lbs. It can pull up to 2.92 lbs steel.

INQUIRY Can't Find The Size

Follow Us On


Description

Product ID: SMRN0656
Material: NdFeB
Shape: Ring
Dimension: 1/4” od x 1/8” id x 1/2” thick
Tolerances: ±0.004″ x ±0.004″ x ±0.004″
Weight(Oz.): 0.08
Grade: N42
Coating: Nickel Coated Magnets
Pull Force(Lbs): 2.92
Magnetization direction: Through Thickness
Magnetic Face: 1/4″ od x 1/8″ id
Max Operating Temp(C/F): 80/176
