SMRN0657 Neodymium RING Magnet - Stanford Magnets

SMRN0657 Neodymium RING Magnet

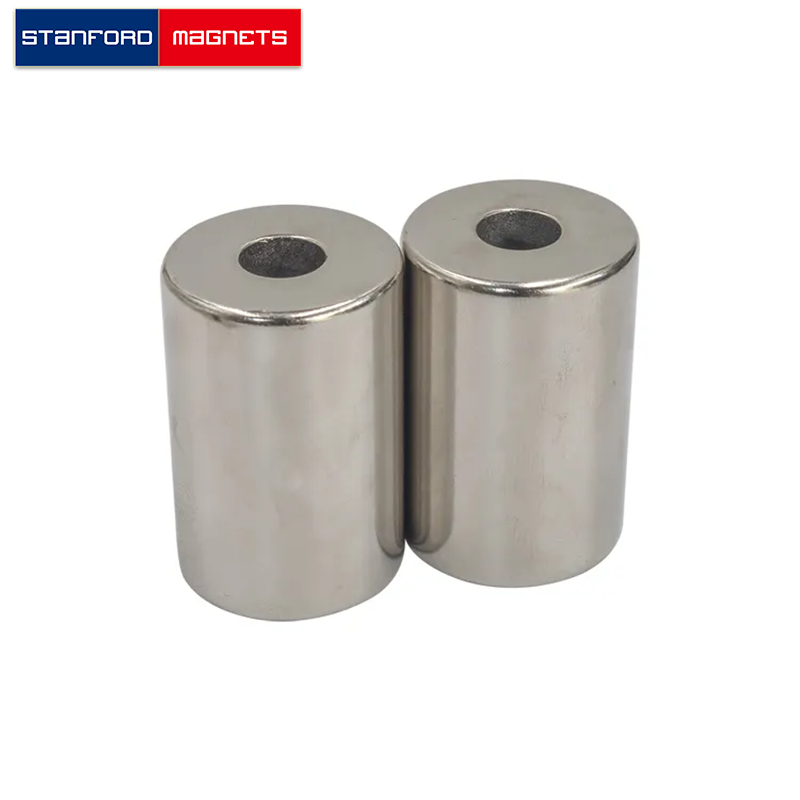

The SMRN0657 RING neodymium magnet is made from high performance N42 NdFeB, with Nickel coating. The dimension of this item is 3/8″ od × 3/32″ id × 3/8″ thick, magnetized Diametrical, with tolerance of ±0.004″ × ±0.004″ × ±0.004″. The weight of this super strong neodymium magnet is 0.0105 lbs. It can pull up to 5.35 lbs steel. And the surface field is up to 6590 gauss.

INQUIRY Can't Find The Size

Follow Us On


Description

Product ID: SMRN0657
Material: NdFeB
Shape: Ring
Dimension: 3/8” od x 3/32” id x 3/8” thick
Tolerances: ±0.004″ x ±0.004″ x ±0.004″
Weight(Oz.): 0.17
Grade: N42
Coating: Nickel Coated Magnets
Pull Force(Lbs): 5.35
Surface Field(Gauss): 6590
Magnetization direction: Diametrical
Max Operating Temp(C/F): 80/176
