SMRN0663 Neodymium Ring Magnet | Stanford Magnets

Name: SMRN0663 Neodymium Ring Magnet
SKU: SMRN0663

SMRN0663 Neodymium Ring Magnet

Product ID: SMRN0663
Material: NdFeB
Shape: Ring
Dimension: 3/8” od x 3/16” id x 3/8” thick
Tolerances: ±0.004″ x ±0.004″ x ±0.004″
Weight(Oz.): 0.14
Grade: N42
Coating: Nickel Coated Magnets
Pull Force(Lbs): 6.2
Magnetization Direction: Through Thickness
Magnetic Face: 3/8″ od x 3/16″ id
Max Operating Temp(C/F): 80/176

INQUIRY Can't Find The Size

Follow Us On

Description
Additional information

Description

SMRN0663 Neodymium Ring Magnet Introduction

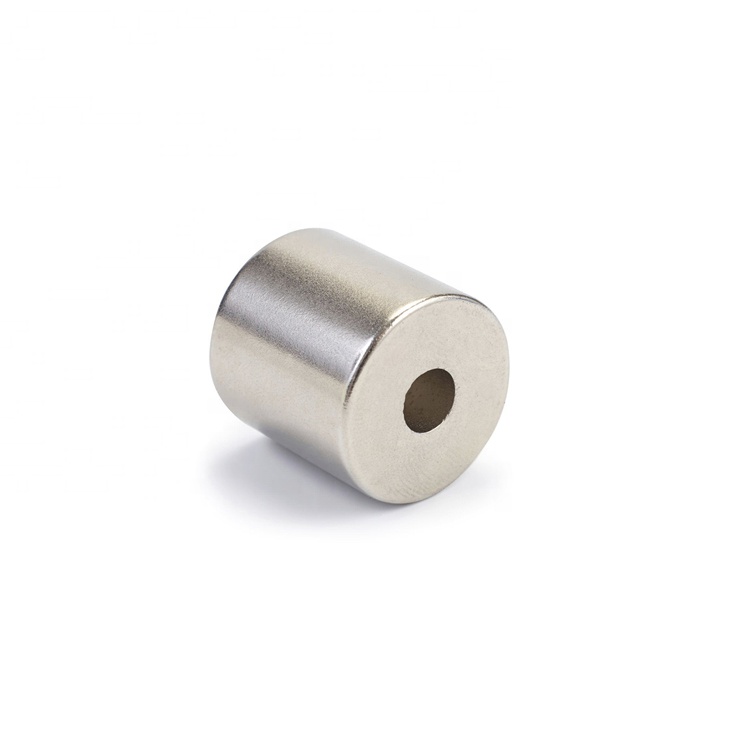

The SMRN0663 RING neodymium magnet is made from high-performance N42 NdFeB, with Nickel coating. The dimension of this item is 3/8″ od × 3/16″ id × 3/8″ thick, magnetized through thickness, with the tolerance of ±0.004″ × ±0.004″ × ±0.004″. The weight of this super strong neodymium magnet is 0.0084375 lbs. It can pull up to 6.2 lbs steel.

SMRN0663 Neodymium Ring Magnet Applications

Neodymium NdFeB ring Magnets are widely used in many fields, such as motors, sensors, microphones, wind turbines, wind generators, printer, switchboard, packing box, loudspeakers, magnetic separation, magnetic hooks, magnetic holder, magnetic chuck, etc.

Additional information

FAQ

1. How long will you give me a reply?
You will get our reply within 12hours during our working days.

2: Could I get samples?
Yes, you will get samples shortly if there are materials in stock.

3: How about the quality of the magnets?
Quality control is strictly required before delivery, you will get our products with our test certifications.

4: How is the price?
The price will be reasonable and competitive among the same quality levels.

5: Could you provide me with the shortest lead time?
If there are materials of your required products in stock, the lead time could be largely shortened.

6: Could I visit your factory?
Of course, you are warmly welcomed to visit us.

7: If I have paid, when will you help me to produce?
The production will be started as soon as we received your payment.
