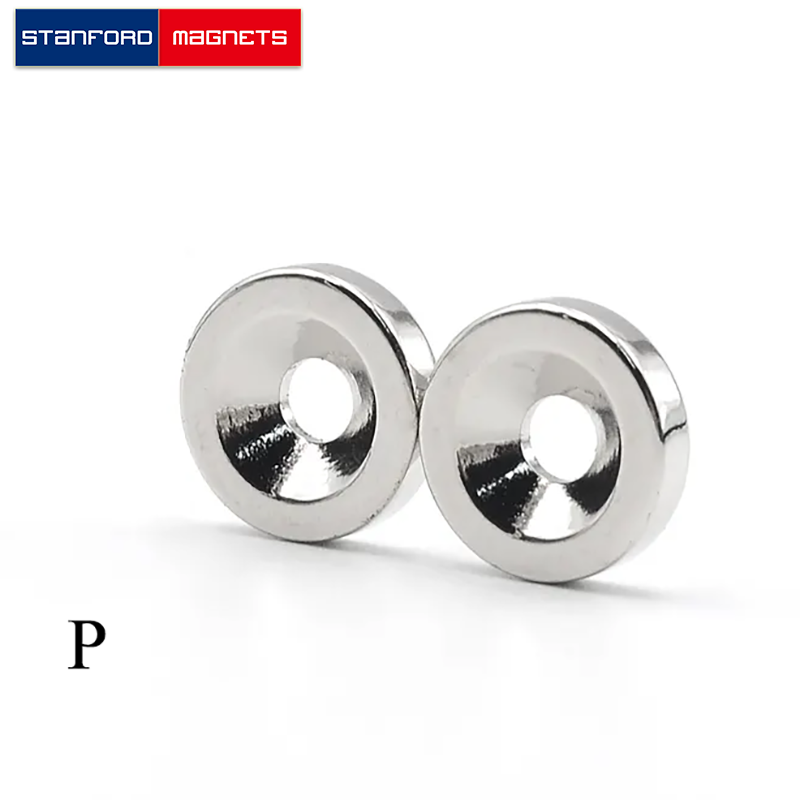

SMRN0670 Neodymium Countersunk Magnet | Stanford Magnets

Name: SMRN0670 Neodymium Countersunk Magnet
SKU: SMRN0670

SMRN0670 Neodymium Countersunk Magnet

Product ID: SMRN0670
Material: NdFeB
Shape: Countersunk
Dimension: 1/2” od x 1/8” id x 1/8” thick with countersunk hole for #4 screw
Tolerances: ±0.004″ x ±0.004″ x ±0.004″
Weight(Oz.): 0.2
Grade: N42
Coating: Nickel Coated Magnets
Pull Force(Lbs): 5.35
Magnetization Direction: Through Thickness
Magnetic Face: 1/2″ od x 1/8″ id
Max Operating Temp(C/F): 80/176

INQUIRY Can't Find The Size

Follow Us On

Description

Description

The SMRN0670 countersunk neodymium magnet is made from high-performance N42 NdFeB, with Nickel coating. The dimension of this item is 1/2″ od × 1/8″ id × 1/8″ thick with countersunk hole for #4 screw, magnetized through thickness, with the tolerance of ±0.004″ × ±0.004″ × ±0.004″. The weight of this super strong neodymium magnet is 0.0123125 lbs. It can pull up to 5.35 lbs steel.
