SMRN0671 Neodymium Ring Magnet | Stanford Magnets

SMRN0671 Neodymium Ring Magnet

Product ID: SMRN0671
Material: NdFeB
Shape: Ring
Dimension: 1/2” od x 1/8” id x 1/4” thick
Tolerances: ±0.004″ x ±0.004″ x ±0.004″
Weight(Oz.): 0.2
Grade: N42
Coating: Nickel Coated Magnets
Pull Force(Lbs): 10.37
Magnetization Direction: Through Thickness
Magnetic Face: 1/2″ od x 1/8″ id
Max Operating Temp(C/F): 80/176

INQUIRY Can't Find The Size

Follow Us On


Description

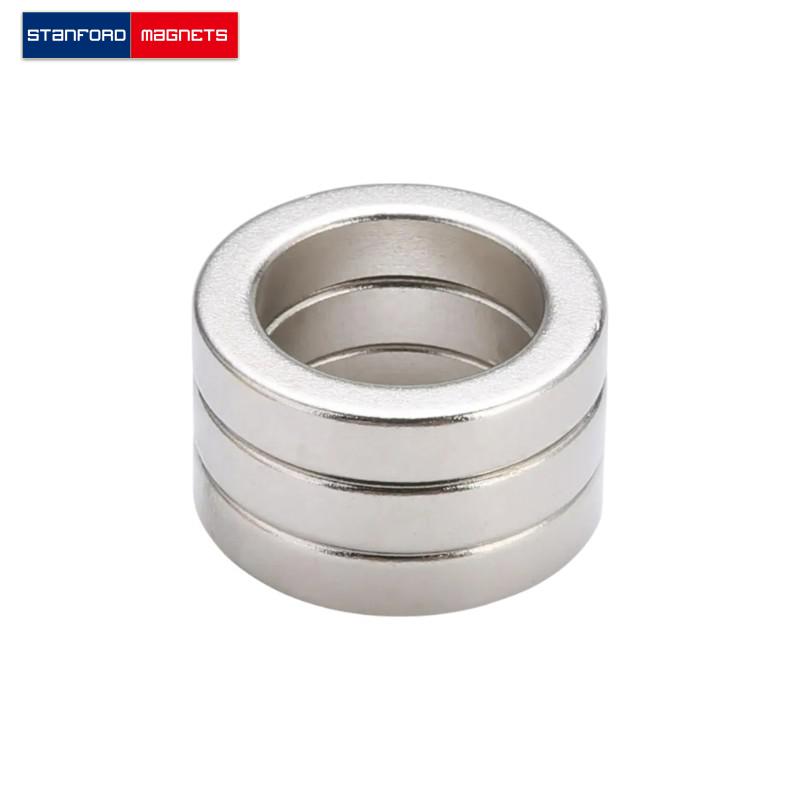

The SMRN0671 ring neodymium magnet is made from high-performance N42 NdFeB, with Nickel coating. The dimension of this item is 1/2″ od × 1/8″ id × 1/4″ thick, magnetized through thickness, with the tolerance of ±0.004″ × ±0.004″ × ±0.004″. The weight of this super strong neodymium magnet is 0.0124375 lbs. It can pull up to 10.37 lbs steel.
