SMRN0674 Neodymium Ring Magnet

Product ID: SMRN0674
Material: NdFeB
Shape: Ring
Dimension: 1/2” od x 3/16” id x 1/4” thick
Tolerances: ±0.004″ x ±0.004″ x ±0.004″
Weight(Oz.): 0.18
Grade: N42
Coating: Nickel Coated Magnets
Pull Force(Lbs): 4.11
Surface Field(Gauss): 6282
Magnetization Direction: Diametrical
Max Operating Temp(C/F): 80/176

INQUIRY Can't Find The Size

Follow Us On


Description

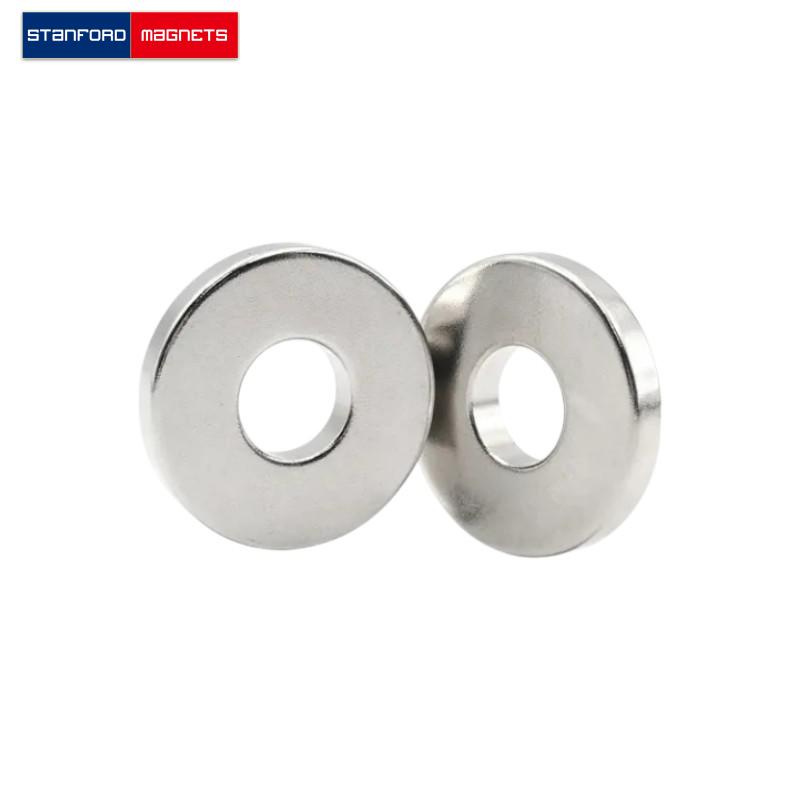

The SMRN0674 ring neodymium magnet is made from high-performance N42 NdFeB, with Nickel coating. The dimension of this item is 1/2″ od × 3/16″ id × 1/4″ thick, magnetized diametrical, with the tolerance of ±0.004″ × ±0.004″ × ±0.004″. The weight of this super strong neodymium magnet is 0.0114375 lbs. It can pull up to 4.11 lbs steel. And the surface field is up to 6282 gausses.
