SMRN0681 Neodymium Countersunk Magnet | Stanford Magnets

Name: SMRN0681 Neodymium Countersunk Magnet
SKU: SMRN0681

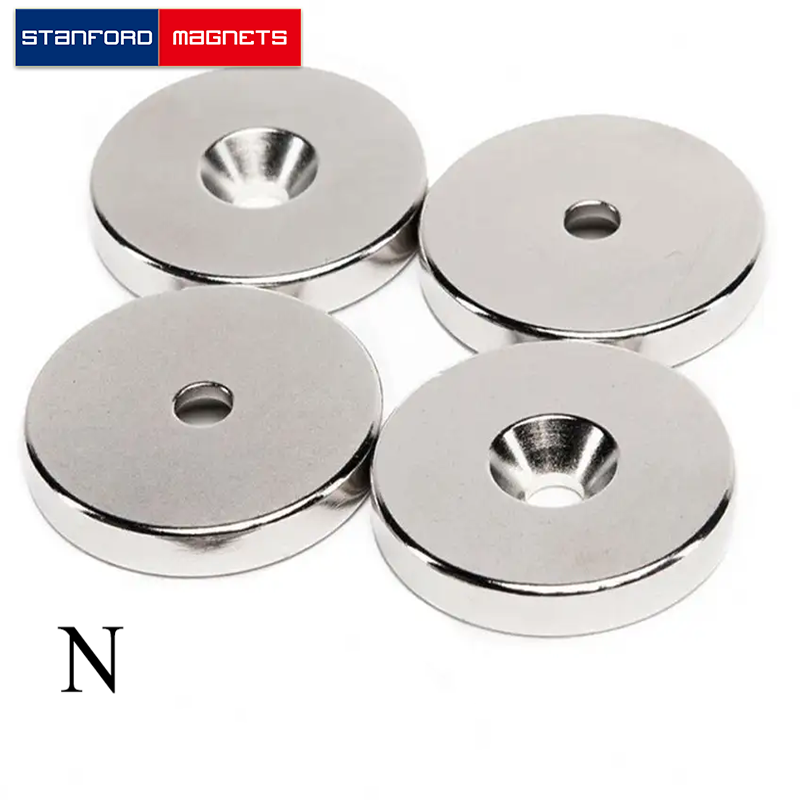

SMRN0681 Neodymium Countersunk Magnet

Product ID: SMRN0681
Material: NdFeB
Shape: Countersunk
Dimension: 5/8” od x 1/8” id x 1/8” thick with countersunk hole for #6 screw
Tolerances: ±0.004″ x ±0.004″ x ±0.004″
Weight(Oz.): 0.15
Grade: N42
Coating: Nickel Coated Magnets
Pull Force(Lbs): 7.15
Magnetization Direction: Through Thickness
Magnetic Face: 5/8″ od x 1/8″ id
Max Operating Temp(C/F): 80/176

INQUIRY Can't Find The Size

Follow Us On

Description

Description

The SMRN0681 countersunk neodymium magnet is made from high-performance N42 NdFeB, with Nickel coating. The dimension of this item is 5/8″ od × 1/8″ id × 1/8″ thick with countersunk hole for #6 screw, magnetized through thickness, with the tolerance of ±0.004″ × ±0.004″ × ±0.004″. The weight of this super strong neodymium magnet is 0.00925 lbs. It can pull up to 7.15 lbs steel.
