SMRN0683 Neodymium Countersunk Magnet

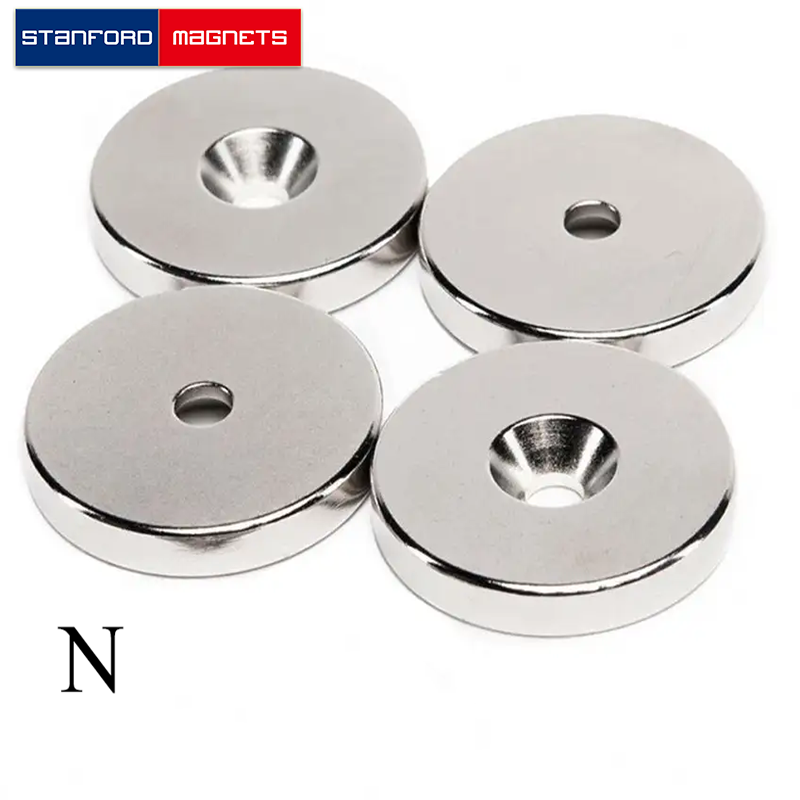

The SMRN0683 RING neodymium magnet is made from high performance N42 NdFeB, with Nickel coating. The dimension of this item is 5/8″ od × 1/8″ id × 1/8″ thick with countersunk hole for #6 screw, magnetized Through Thickness, with tolerance of ±0.004″ × ±0.004″. The weight of this super strong neodymium magnet is 0.0185 lbs. It can pull up to 7.15 lbs steel.

INQUIRY Can't Find The Size

Follow Us On


Product ID: SMRN0683
Material: NdFeB
Shape: Countersunk
Dimension: 5/8” od x 1/8” id x 1/8” thick with countersunk hole for #6 screw
Tolerances: ±0.004″ x ±0.004″
Weight(Oz.): 0.3
Grade: N42
Coating: Nickel Coated Magnets
Pull Force(Lbs): 7.15
Magnetization direction: Through Thickness
Magnetic Face: 5/8″ od x 1/8″ id
Max Operating Temp(C/F): 80/176
