SMRN0687 Neodymium Ring Magnet | Stanford Magnets

SMRN0687 Neodymium Ring Magnet

Product ID: SMRN0687
Material: NdFeB
Shape: Ring
Dimension: 3/4” od x 1/8” id x 1/8” thick
Tolerances: ±0.004″ x ±0.004″ x ±0.004″
Weight(Oz.): 0.23
Grade: N42
Coating: Nickel Coated Magnets
Pull Force(Lbs): 9.63
Magnetization Direction: Through Thickness
Magnetic Face: 3/4″ od x 1/8″ id
Max Operating Temp(C/F): 80/176

INQUIRY Can't Find The Size

Follow Us On

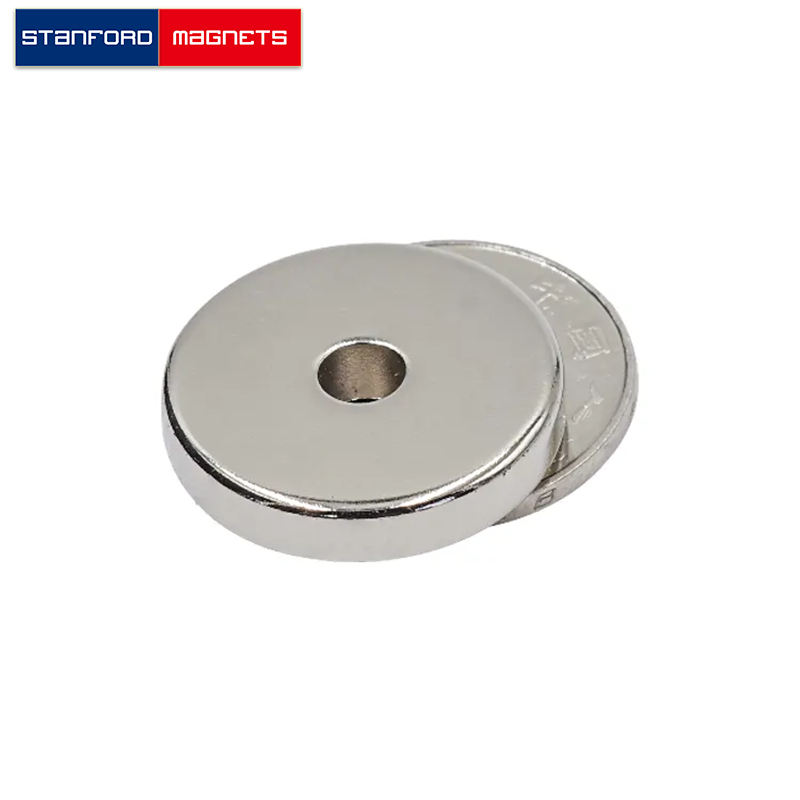

Description

The SMRN0687 ring neodymium magnet is made from high-performance N42 NdFeB, with Nickel coating. The dimension of this item is 3/4″ od × 1/8″ id × 1/8″ thick, magnetized through thickness, with the tolerance of ±0.004″ × ±0.004″ × ±0.004″. The weight of this super strong neodymium magnet is 0.0145625 lbs. It can pull up to 9.63 lbs steel.
