SMRN0689 Neodymium Countersunk Magnet | Stanford Magnets

Name: SMRN0689 Neodymium Countersunk Magnet
SKU: SMRN0689

SMRN0689 Neodymium Countersunk Magnet

Product ID: SMRN0689
Material: NdFeB
Shape: Countersunk
Dimension: 3/4” od x 1/8” id x 1/8” thick with countersunk hole for #8 screw
Tolerances: ±0.004″ x ±0.004″ x ±0.004″
Weight(Oz.): 0.21
Grade: N42
Coating: Nickel Coated Magnets
Pull Force(Lbs): 8.68
Magnetization Direction: Through Thickness
Magnetic Face: 3/4″ od x 1/8″ id
Max Operating Temp(C/F): 80/176

INQUIRY Can't Find The Size

Follow Us On

Description

Description

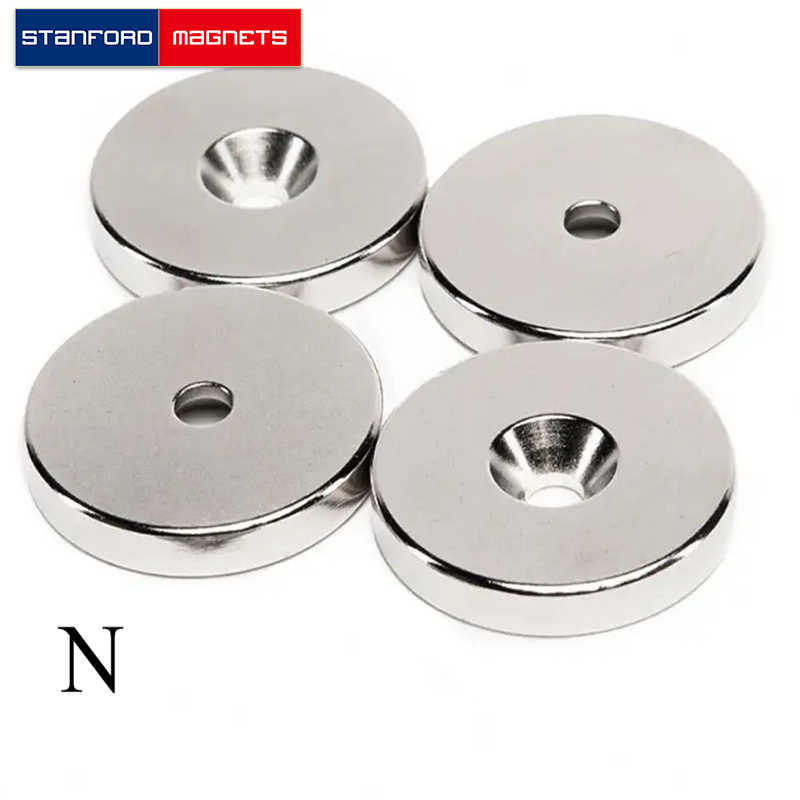

The SMRN0689 countersunk neodymium magnet is made from high-performance N42 NdFeB, with Nickel coating. The dimension of this item is 3/4″ od × 1/8″ id × 1/8″ thick with countersunk hole for #8 screw, magnetized through thickness, with the tolerance of ±0.004″ × ±0.004″ × ±0.004″. The weight of this super strong neodymium magnet is 0.01325 lbs. It can pull up to 8.68 lbs steel.
