Name: SMRN0692 Neodymium RING Magnet
SKU: SMRN0692

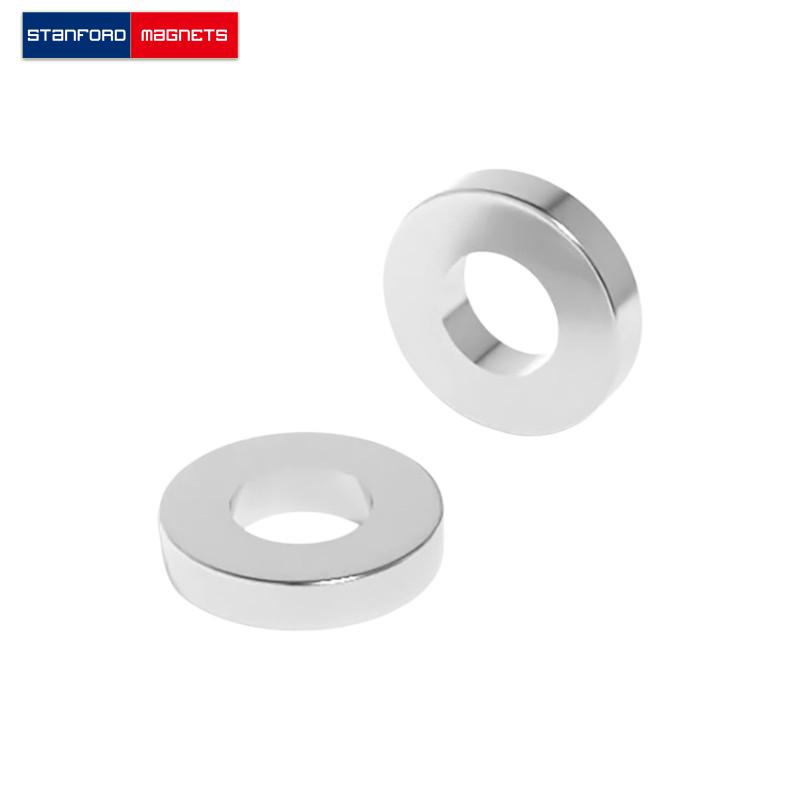

SMRN0692 Neodymium RING Magnet

The SMRN0692 RING neodymium magnet is made from high performance N52 NdFeB, with Nickel coating. The dimension of this item is 3/4″ od × 1/4″ id × 1/4″ thick, magnetized Through Thickness, with tolerance of ±0.004″ × ±0.004″ × ±0.004″. The weight of this super strong neodymium magnet is 0.026625 lbs. It can pull up to 21.81 lbs steel.

INQUIRY Can't Find The Size

Follow Us On

Description

Description

Product ID: SMRN0692
Material: NdFeB
Shape: Ring
Dimension: 3/4” od x 1/4” id x 1/4” thick
Tolerances: ±0.004″ x ±0.004″ x ±0.004″
Weight(Oz.): 0.43
Grade: N52
Coating: Nickel Coated Magnets
Pull Force(Lbs): 21.81
Magnetization direction: Through Thickness
Magnetic Face: 3/4″ od x 1/4″ id
Max Operating Temp(C/F): 80/176
