SMRN0697 Neodymium Countersunk Magnet | Stanford Magnets

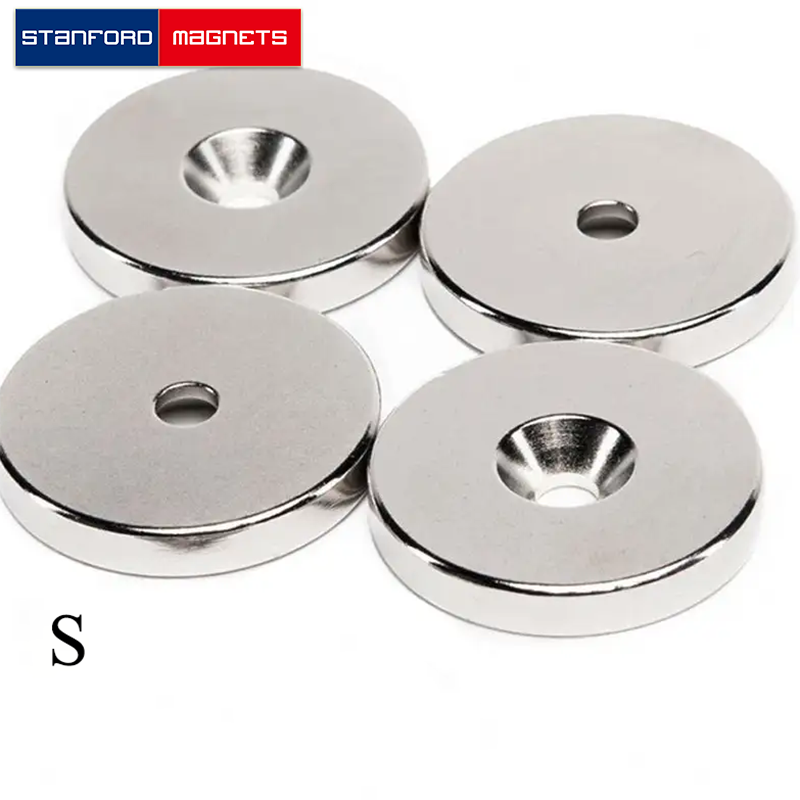

SMRN0697 Neodymium Countersunk Magnet

The SMRN0697 RING neodymium magnet is made from high performance N42 NdFeB, with Nickel coating. The dimension of this item is 7/8″ od × 1/8″ thick with countersunk hole for #8 screw, magnetized Through Thickness, with tolerance of ±0.004″ × ±0.004″ × ±0.004″ × ±0.004″. The weight of this super strong neodymium magnet is 0.0199375 lbs. It can pull up to 10.23 lbs steel.

INQUIRY Can't Find The Size

Follow Us On


Description

Product ID: SMRN0697
Material: NdFeB
Shape: Countersunk
Dimension: 7/8” od x 1/8” thick with countersunk hole for #8 screw
Tolerances: ±0.004″ x ±0.004″ x ±0.004″ x ±0.004″
Weight(Oz.): 0.32
Grade: N42
Coating: Nickel Coated Magnets
Pull Force(Lbs): 10.23
Magnetization direction: Through Thickness
Magnetic Face: 7/8″ od
Max Operating Temp(C/F): 80/176
