SMRN0700 Neodymium Ring Magnet

Product ID: SMRN0700
Material: NdFeB
Shape: Ring
Dimension: 1” od x 1/8” id x 1/4” thick
Tolerances: ±0.004″ x ±0.004″ x ±0.004″
Weight(Oz.): 0.84
Grade: N42
Coating: Nickel Coated Magnets
Pull Force(Lbs): 11.11
Surface Field(Gauss): 7187
Magnetization Direction: Diametrical
Max Operating Temp(C/F): 80/176

INQUIRY Can't Find The Size

Follow Us On


Description

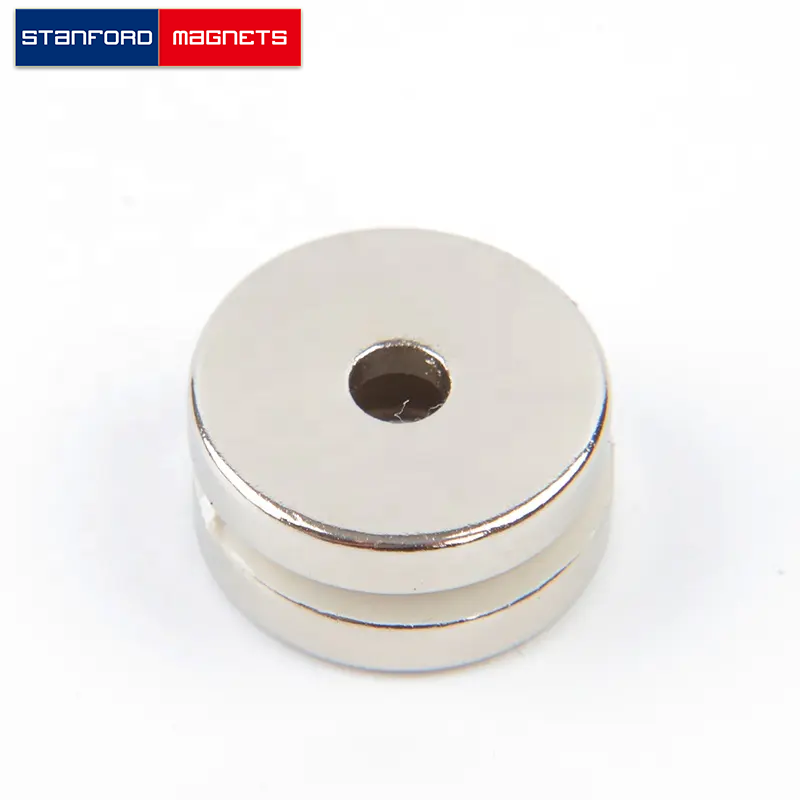

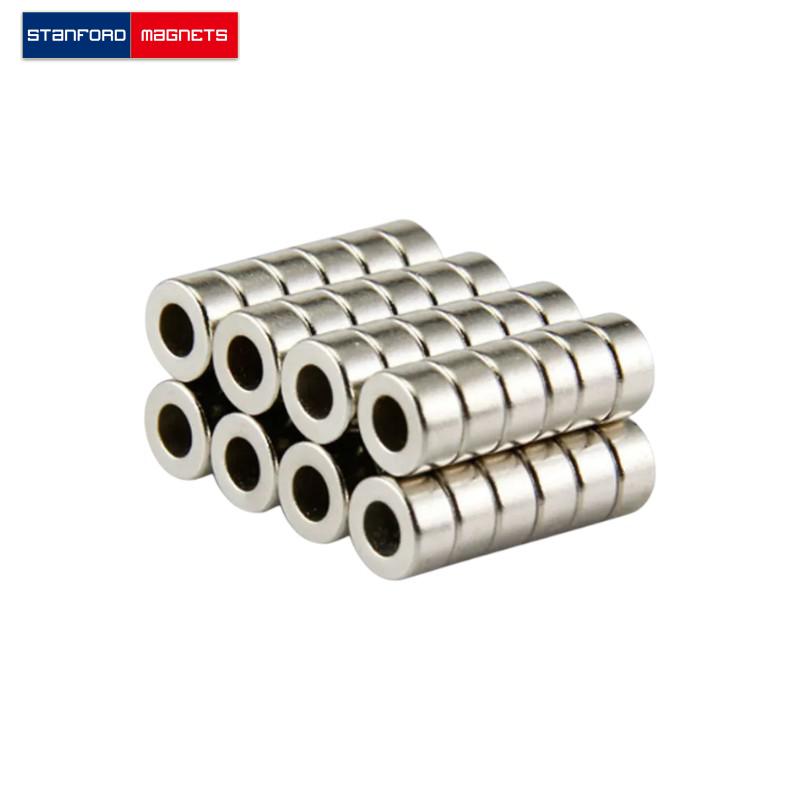

The SMRN0700 ring neodymium magnet is made from high-performance N42 NdFeB, with Nickel coating. The dimension of this item is 1″ od × 1/8″ id × 1/4″ thick, magnetized diametrical, with the tolerance of ±0.004″ × ±0.004″ × ±0.004″. The weight of this super strong neodymium magnet is 0.052375 lbs. It can pull up to 11.11 lbs steel. And the surface field is up to 7187 gausses.
