SMRN0701 Neodymium Ring Magnet | Stanford Magnets

SMRN0701 Neodymium Ring Magnet

Product ID: SMRN0701
Material: NdFeB
Shape: Ring
Dimension: 1” od x 3/16” id x 1/8” thick
Tolerances: ±0.004″ x ±0.004″ x ±0.004″
Weight(Oz.): 0.41
Grade: N42
Coating: Nickel Coated Magnets
Pull Force(Lbs): 12.41
Magnetization Direction: Through Thickness
Magnetic Face: 1″ od x 3/16″ id
Max Operating Temp(C/F): 80/176

INQUIRY Can't Find The Size

Follow Us On

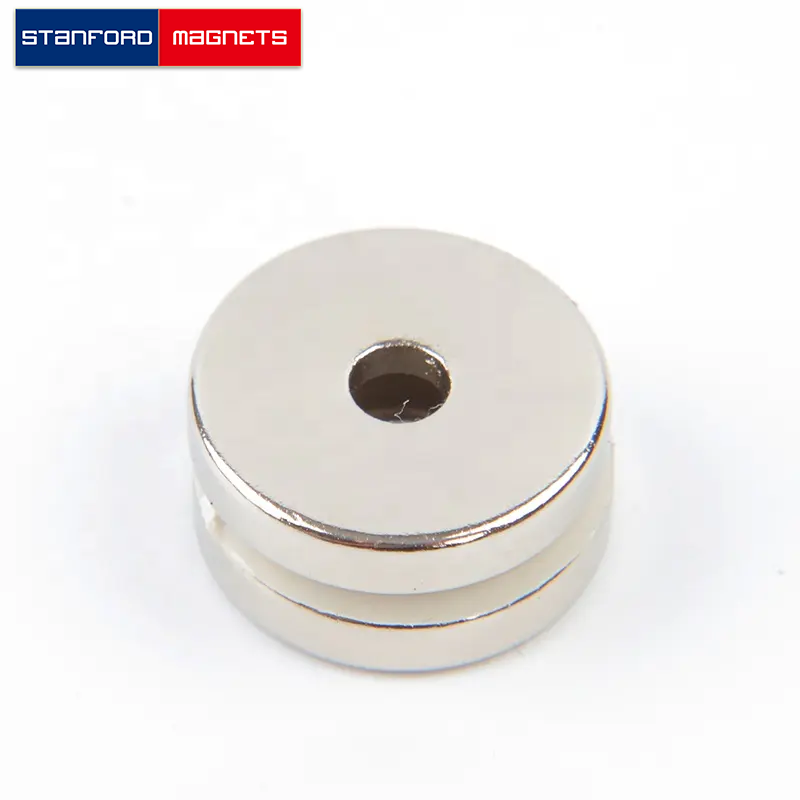

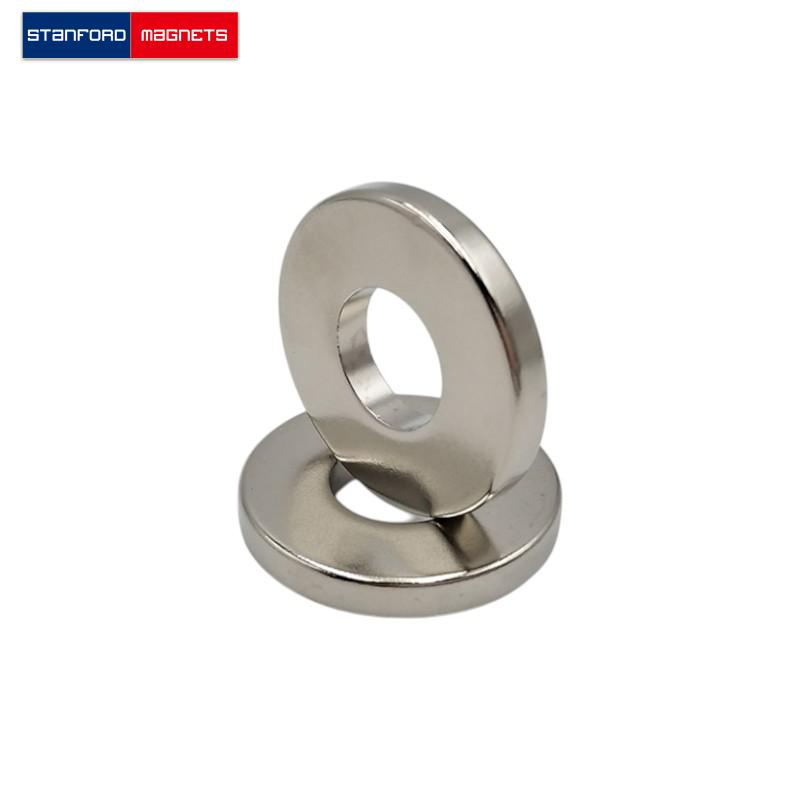

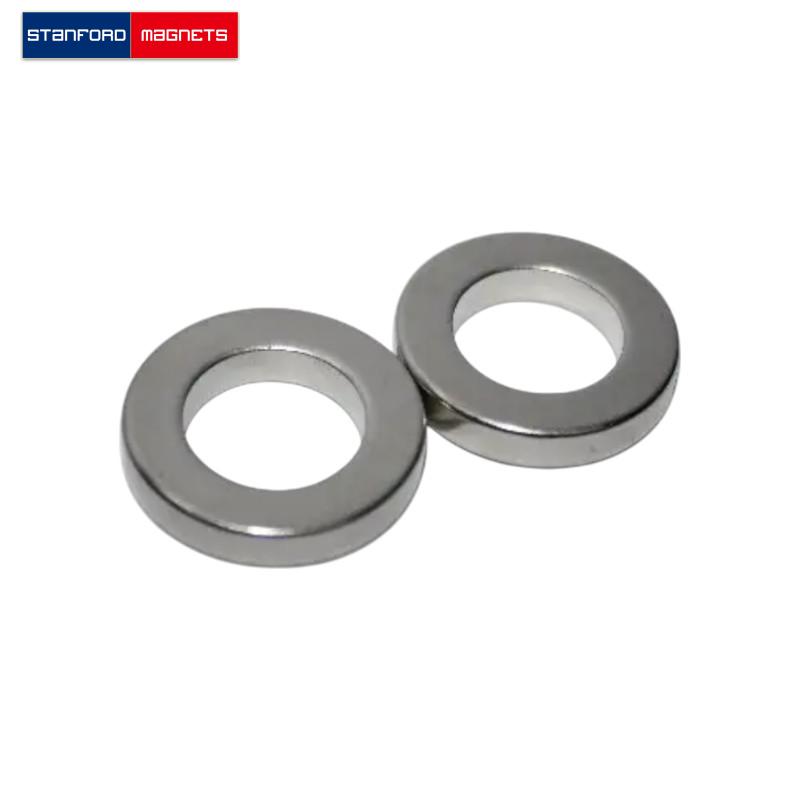

The SMRN0701 ring neodymium magnet is made from high-performance N42 NdFeB, with Nickel coating. The dimension of this item is 1″ od × 3/16″ id × 1/8″ thick, magnetized through thickness, with the tolerance of ±0.004″ × ±0.004″ × ±0.004″. The weight of this super strong neodymium magnet is 0.0256875 lbs. It can pull up to 12.41 lbs steel.
