SMRN0702 Neodymium Countersunk Magnet - Stanford Magnets

SMRN0702 Neodymium Countersunk Magnet

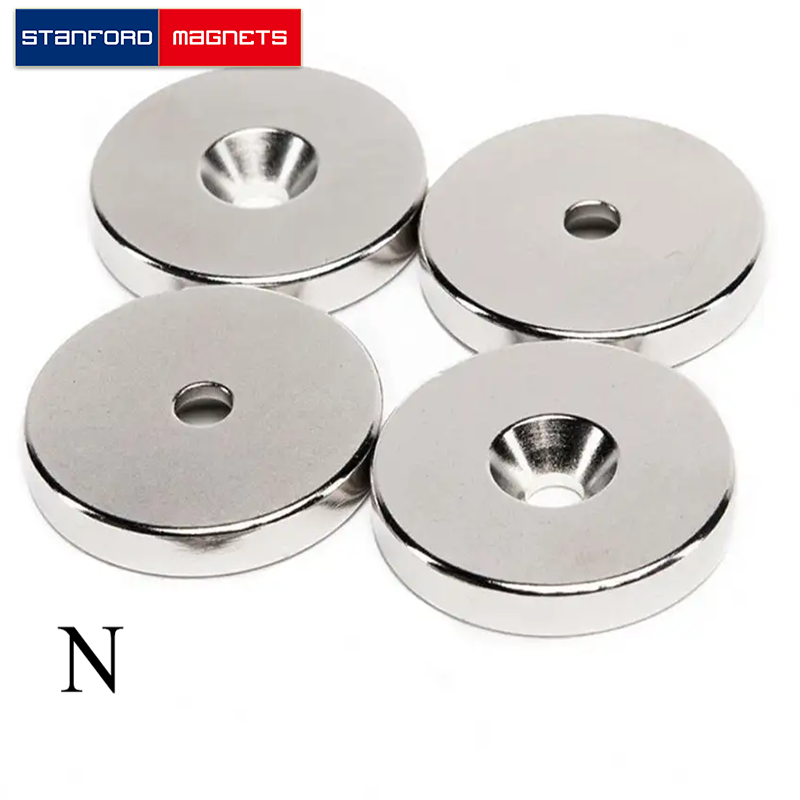

The SMRN0702 RING neodymium magnet is made from high performance N42 NdFeB, with Nickel coating. The dimension of this item is 1″ od × 3/16″ thick with countersunk hole for #10 screw, magnetized Through Thickness, with tolerance of ±0.004″ × ±0.004″. The weight of this super strong neodymium magnet is 0.036875 lbs. It can pull up to 20.51 lbs steel.

INQUIRY Can't Find The Size

Follow Us On


Description

Product ID: SMRN0702
Material: NdFeB
Shape: Countersunk
Dimension: 1” od x 3/16” thick with countersunk hole for #10 screw
Tolerances: ±0.004″ x ±0.004″
Weight(Oz.): 0.59
Grade: N42
Coating: Nickel Coated Magnets
Pull Force(Lbs): 20.51
Magnetization direction: Through Thickness
Magnetic Face: 1″ od
Max Operating Temp(C/F): 80/176
