SMRN0715 Neodymium Ring Magnet

Product ID: SMRN0715
Material: NdFeB
Shape: Ring
Dimension: 1” od x 1/2” id x 1” thick
Tolerances: ±0.004″ x ±0.004″ x ±0.004″
Weight(Oz.): 2.55
Grade: N42
Coating: Nickel Coated Magnets
Pull Force(Lbs): 46.44
Magnetization Direction: Through Thickness
Magnetic Face: 1″ od x 1/2″ id
Max Operating Temp(C/F): 80/176

INQUIRY Can't Find The Size

Follow Us On


Description

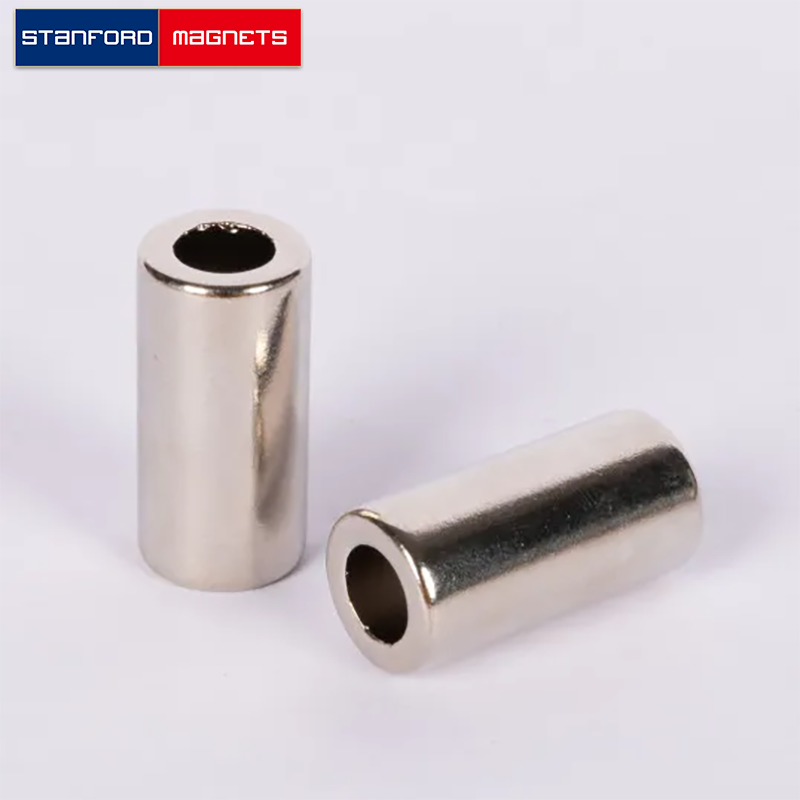

The SMRN0715 ring neodymium magnet is made from high-performance N42 NdFeB, with Nickel coating. The dimension of this item is 1″ od × 1/2″ id × 1″ thick, magnetized through thickness, with the tolerance of ±0.004″ × ±0.004″ × ±0.004″. The weight of this super strong neodymium magnet is 0.159375 lbs. It can pull up to 46.44 lbs steel.
