SMRN0724 Neodymium Ring Magnet | Stanford Magnets

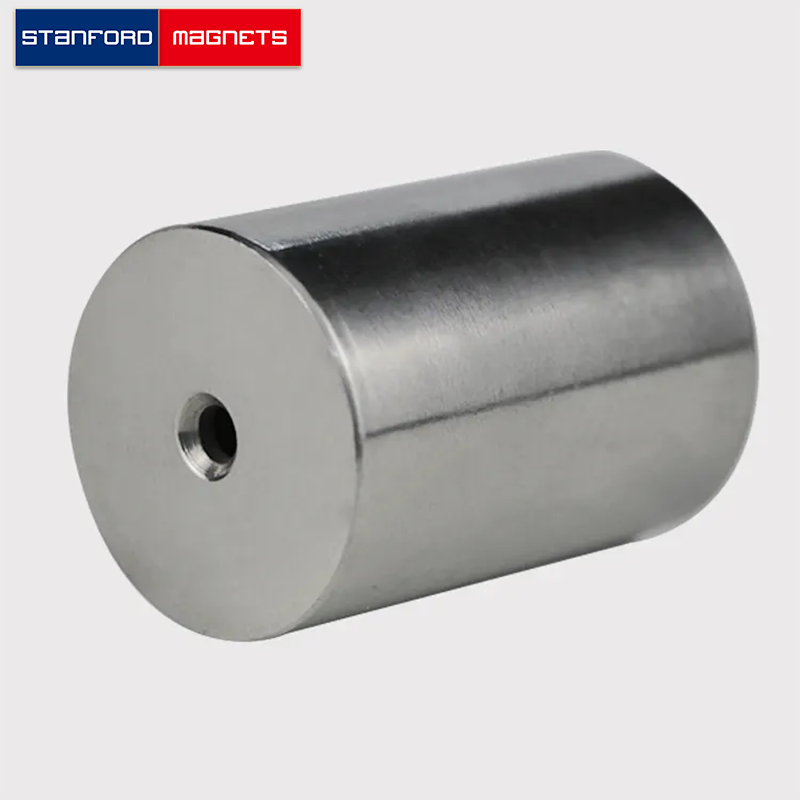

SMRN0724 Neodymium Ring Magnet

Product ID: SMRN0724
Material: NdFeB
Shape: Ring
Dimension: 1 1/2” od x 1/4” id x 1 1/2” thick
Tolerances: ±0.004″ x ±0.004″ x ±0.004″
Weight(Oz.): 11.17
Grade: N42
Coating: Nickel Coated Magnets
Pull Force(Lbs): 141.7
Magnetization Direction: Through Thickness
Magnetic Face: 1 1/2″ od x 1/4″ id
Max Operating Temp(C/F): 80/176

INQUIRY Can't Find The Size

Follow Us On


SMRN0724 Neodymium Ring Magnet Introduction

The SMRN0724 ring neodymium magnet is made from high-performance N42 NdFeB, with Nickel coating. The dimension of this item is 1 1/2″ od × 1/4″ id × 1 1/2″ thick, magnetized through thickness, with the tolerance of ±0.004″ × ±0.004″ × ±0.004″. The weight of this super strong neodymium magnet is 0.698125 lbs. It can pull up to 141.7 lbs steel.

SMRN0724 Neodymium Ring Magnet Safety Tips

The smrn0724 neodymium ring magnet has a very strong attractive force. Unsafe handling could cause jamming of fingers or skin in between magnets. This may lead to contusions and bruises. You should always wear heavy protective gloves and eye protection when handling the smrn0724 neodymium ring magnet. Store the smrn0724 neodymium ring magnet at least one meter away from your body. Separate this item with a piece of cardboard.
