SMRN0726 Neodymium Ring Magnet | Stanford Magnets

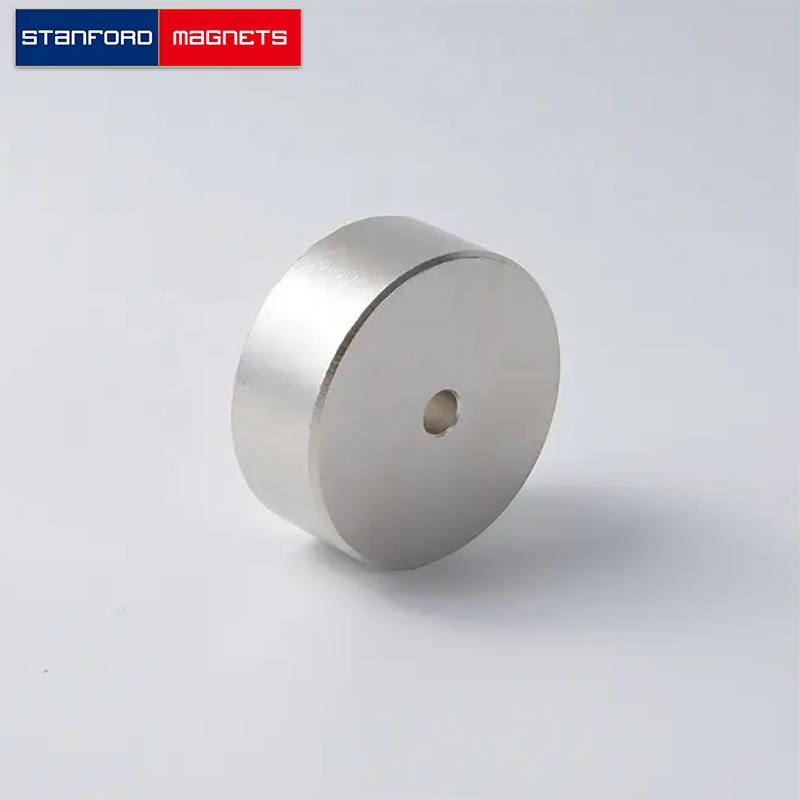

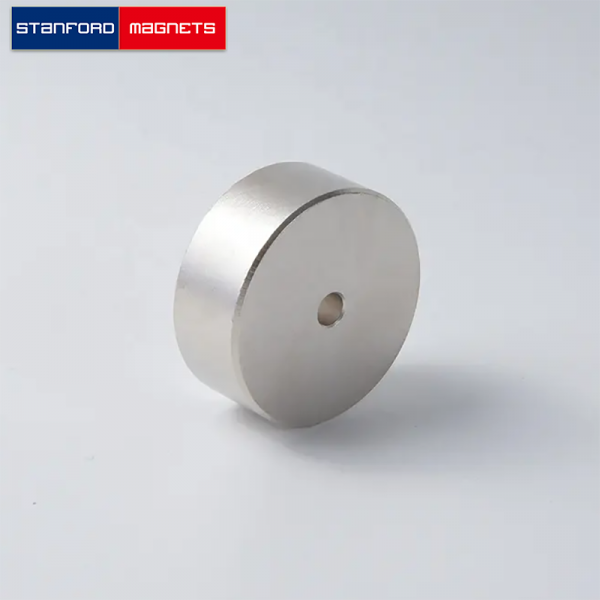

SMRN0726 Neodymium Ring Magnet

Product ID: SMRN0726
Material: NdFeB
Shape: Ring
Dimension: 1 3/4” od x 1/4” id x 1/2” thick
Tolerances: ±0.004″ x ±0.004″ x ±0.004″
Weight(Oz.): 5.11
Grade: N42
Coating: Nickel Coated Magnets
Pull Force(Lbs): 83.86
Magnetization Direction: Through Thickness
Magnetic Face: 1 3/4″ od x 1/4″ id
Max Operating Temp(C/F): 80/176

INQUIRY Can't Find The Size

Follow Us On


Description

The SMRN0726 ring neodymium magnet is made from high-performance N42 NdFeB, with Nickel coating. The dimension of this item is 1 3/4″ od × 1/4″ id × 1/2″ thick, magnetized through thickness, with the tolerance of ±0.004″ × ±0.004″ × ±0.004″. The weight of this super strong neodymium magnet is 0.319375 lbs. It can pull up to 83.86 lbs steel.
