SMRN0730 Neodymium RING Magnet | Stanford Magnets

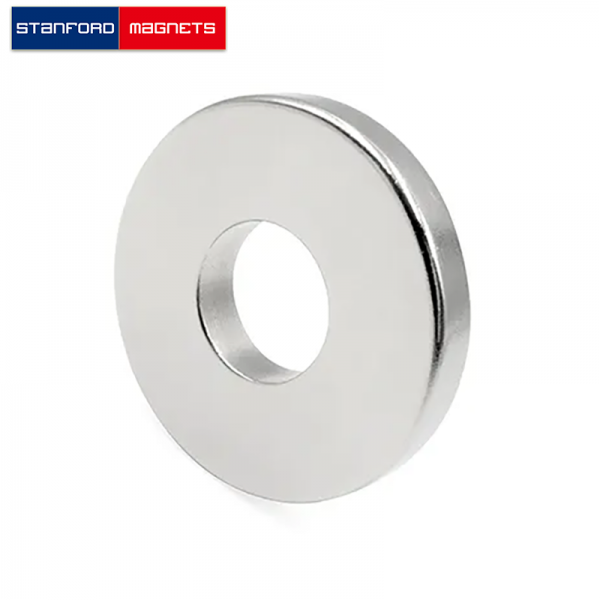

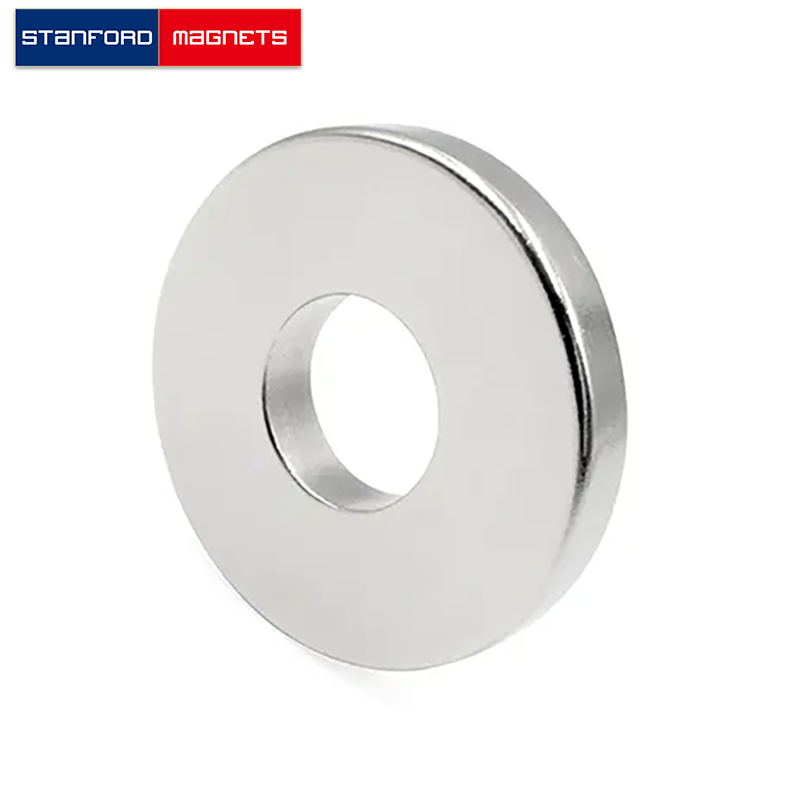

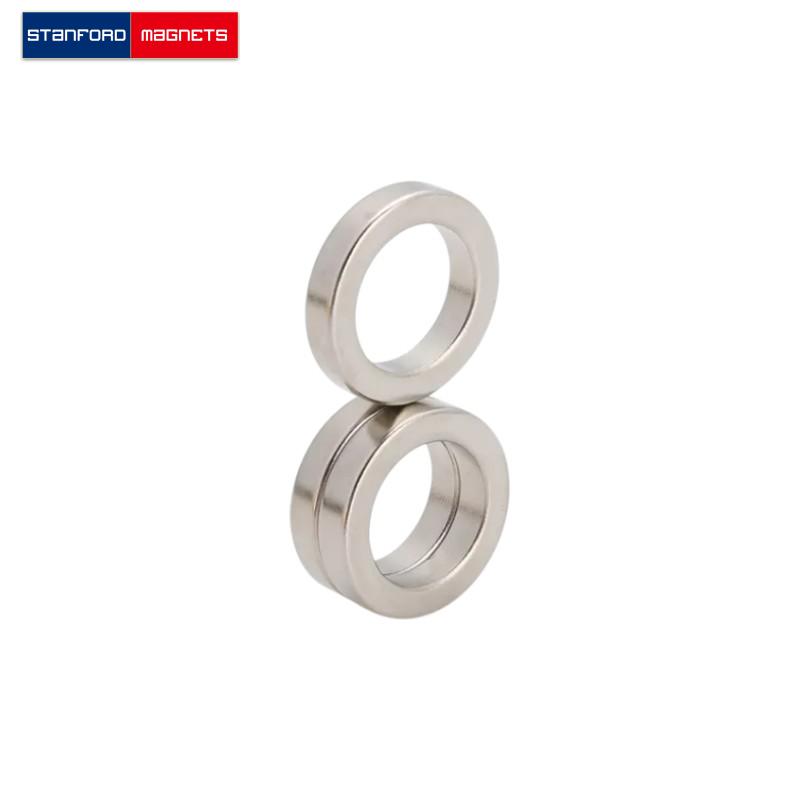

SMRN0730 Neodymium RING Magnet

The SMRN0730 RING neodymium magnet is made from high performance N42 NdFeB, with Nickel coating. The dimension of this item is 2″ od × 1″ id × 1/4″ thick, magnetized Through Thickness, with tolerance of ±0.004″ × ±0.004″ × ±0.004″. The weight of this super strong neodymium magnet is 0.159375 lbs. It can pull up to 39.61 lbs steel.

INQUIRY Can't Find The Size

Follow Us On


Product ID: SMRN0730
Material: NdFeB
Shape: Ring
Dimension: 2” od x 1” id x 1/4” thick
Tolerances: ±0.004″ x ±0.004″ x ±0.004″
Weight(Oz.): 2.55
Grade: N42
Coating: Nickel Coated Magnets
Pull Force(Lbs): 39.61
Magnetization direction: Through Thickness
Magnetic Face: 2″ od x 1″ id
Max Operating Temp(C/F): 80/176
