SMRN0735 Neodymium RING Magnet | Stanford Magnets

SMRN0735 Neodymium RING Magnet

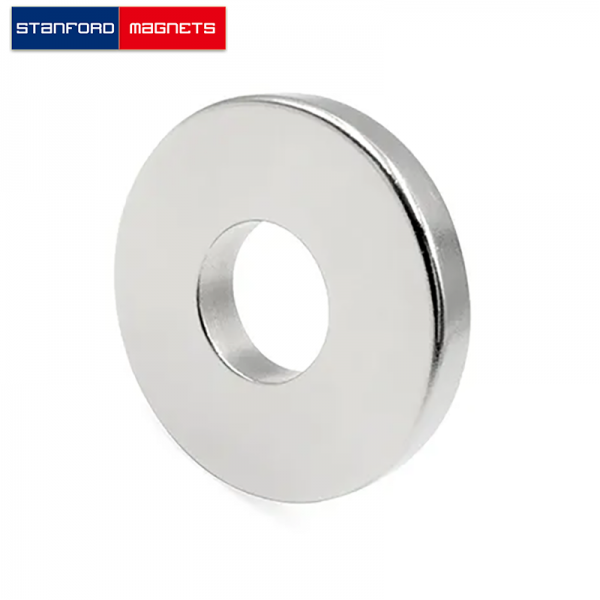

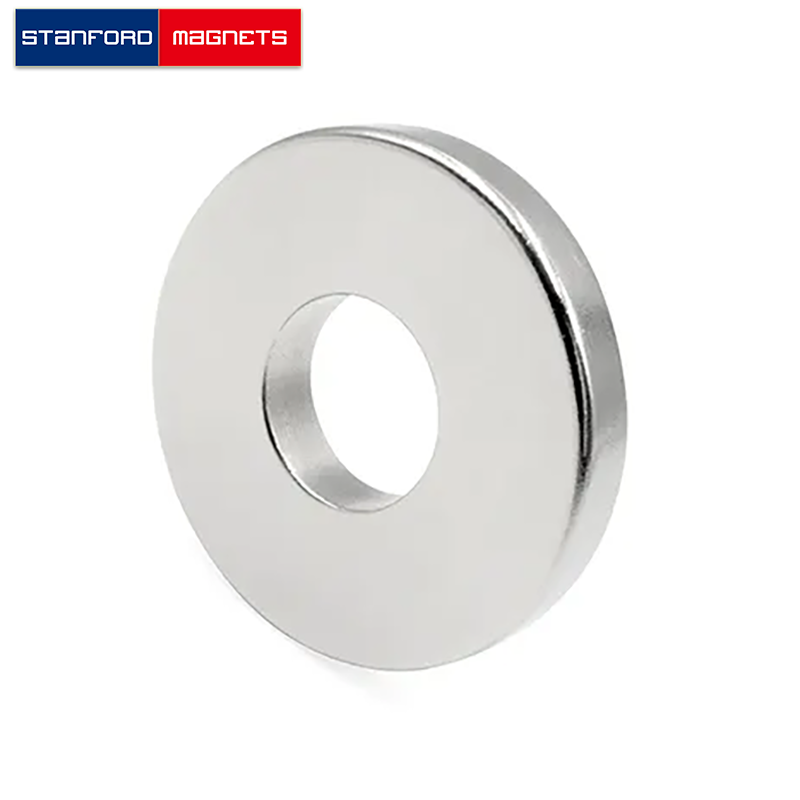

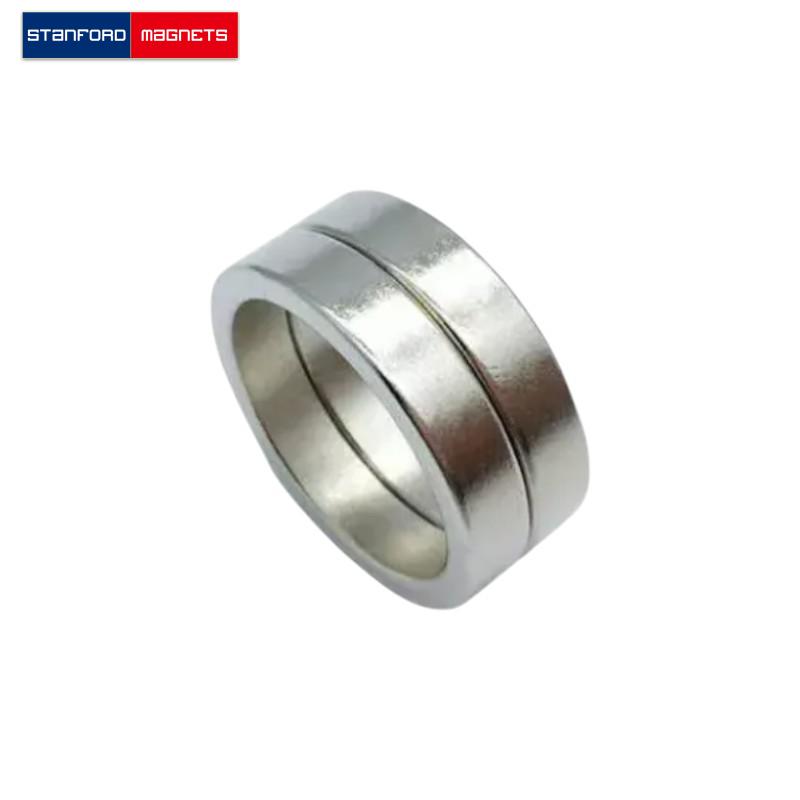

The SMRN0735 RING neodymium magnet is made from high performance N42 NdFeB, with Nickel coating. The dimension of this item is 3″ od × 1 1/2″ id × 1/4″ thick, magnetized Through Thickness, with tolerance of ±0.004″ × ±0.004″ × ±0.004″. The weight of this super strong neodymium magnet is 0.359375 lbs. It can pull up to 56.72 lbs steel.

INQUIRY Can't Find The Size

Follow Us On


Description

Product ID: SMRN0735
Material: NdFeB
Shape: Ring
Dimension: 3” od x 1 1/2” id x 1/4” thick
Tolerances: ±0.004″ x ±0.004″ x ±0.004″
Weight(Oz.): 5.75
Grade: N42
Coating: Nickel Coated Magnets
Pull Force(Lbs): 56.72
Magnetization direction: Through Thickness
Magnetic Face: 3″ od x 1 1/2″ id
Max Operating Temp(C/F): 80/176
