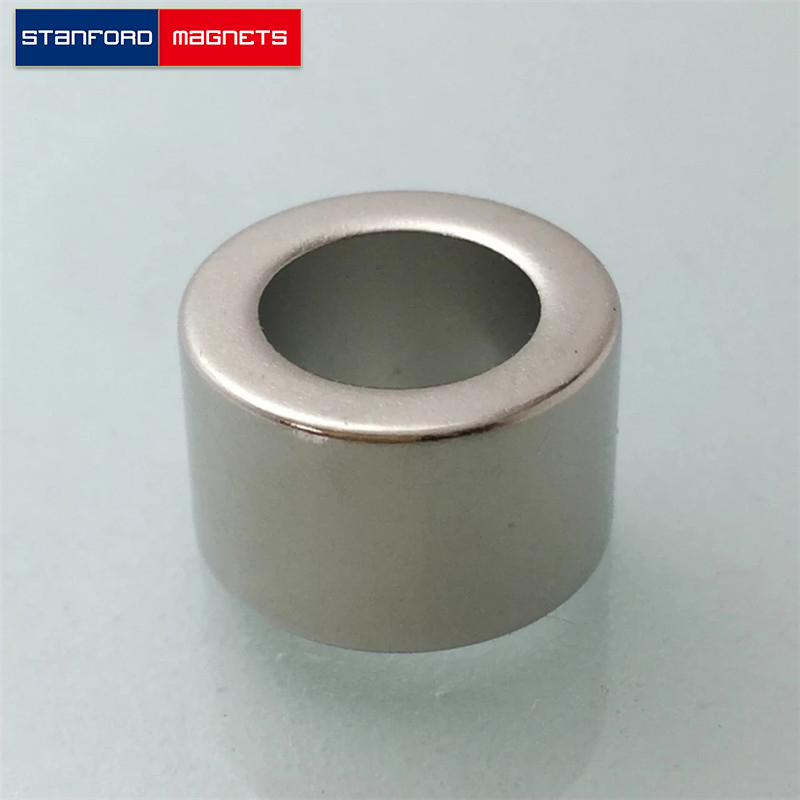

SMRS0001 SmCo Ring Magnet (Discontinued)


Product ID: SMRS0001
Material: Sm2Co17
Shape: Ring
Dimension: 10mm dia x 5mm thickness
Grade: 26M
Coating: Magnets Requiring no Protective Coating
Pull Force(Lbs): 2.65
Surface Field(Gauss): 3600
Magnetization Direction: Through Thickness
Magnetic Face: 10mm dia
Max Operating Temp(C/F): 300/572

INQUIRY Can't Find The Size

Follow Us On


The SMRS0001 SmCo Ring Magnet is made from high-performance 26M Sm2Co17, without other protective coatings.
