SMRX034DCSPC-BLK Rubber Coated Magnets - Stanford Magnets

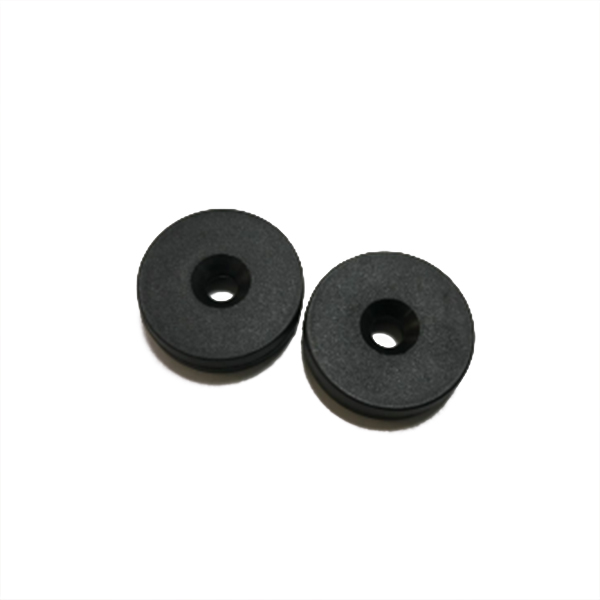

SMRX034DCSPC-BLK Rubber Coated Magnets

Dimensions: 1″ od x 0.194″ id x 0.349″ id x 1/4″ thick w/ hole to accept #6 screws
Tolerances: ±0.004″ x ±0.004″ x ±0.004″ x ±0.004″
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni Black Plastic
Magnetization Direction: Axial (Poles on Flat Ends)
Weight: 0.515 oz. (14.61 g)
Pull Force, Case 1: 9.56 lbs
Pull Force, Case 2: 21.95 lbs
Max Operating Temp: 176ºF (80ºC)
Brmax: 13,200 Gauss
BHmax: 42 MGOe

The SMRX034DCSPC combines the qualities of some of our most popular magnets and rolls them up into one neat little package! All the versatility of a countersunk ring wrapped in a rugged plastic coating. And since it’s double countersunk, it’s also reversible. Perfect for attaching objects to painted surfaces, crafts, signage, displays and more.
