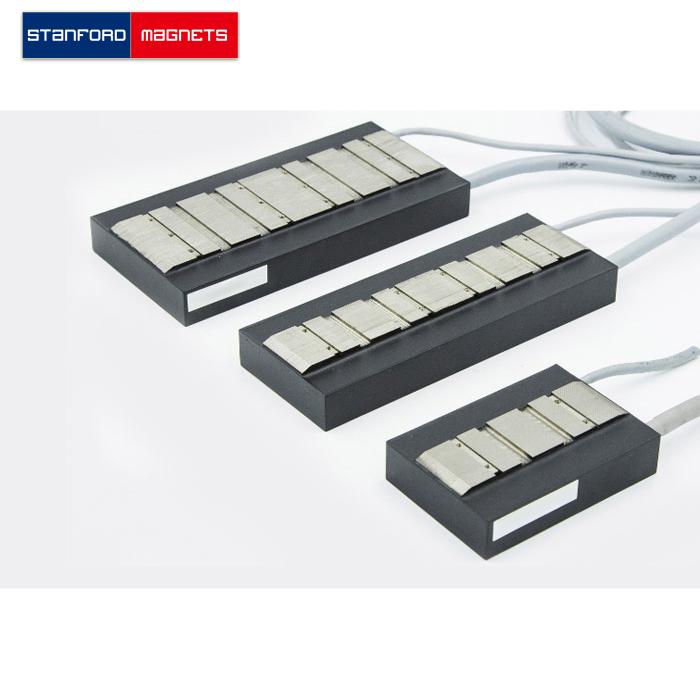

U Shape Iron Linear Motor TMLA0130-175

SMON6056 U Shape Iron Linear Motor TMLA0130-175

Product ID: SMON6056

{{el.prop}}: {{el.options}}

DESCRIPTION

U Shape Iron Core Linear Motor Introduction

Iron Core Linear Motor features a direct-drive brushless design with a slotless structure to minimize cogging force, delivering high thrust, rigidity, speed, and acceleration. With an optional integrated Hall effect commutation and a modular design, these motors provide versatile solutions for various applications, offering both standard and fully customizable configurations to meet specific customer requirements.

U Shape Iron Core Linear Motor offers standard magnetic rail travel that can be extended infinitely. They can be configured into single-axis or multi-axis platform modules, allowing for seamless integration into your equipment. Additionally, customization options are available to cater to unique customer needs.

U Shape Iron Core Linear Motor Specification

Rated Performance
Motor Model	-	TMLA0130-175
Peak Force	N	524
Continuous Force	N	131
Motor Constant	N/√W	17.4
Electrical Specifications
Peak Current	A	9.7
Continuous Current	A	2.4
Thrust Constant	N/A	54.1
Back EMF	Vrms/(m/s)	31.2
Resistance	Ohms	5.2
Inductance	mH	24.5
Electrical Time Constant	ms	4.7
Max. Winding Temperature	℃	130
Mechanical Characteristics
Mover Weight (Coil)	Kg	1.3
Magnetic Track Weight (magnetic track)	Kg/m	3.6
Electromagnetic Attraction	N	1050
Installation Gap	mm	0.85
Pole Pitch	mm	32
Stator Specifications	-	TMSA-128 TMSA-256

U Shape Iron Core Linear Motor Applications

Semiconductor Manufacturing Equipment: Ensures precise positioning and smooth motion control in semiconductor fabrication processes.
Flat Panel Display (FPD) Industry: Supports high-speed, high-accuracy operations for manufacturing flat panel displays.
Life Sciences and Medical Devices: Ideal for medical equipment and machine vision inspection systems requiring accurate and delicate movements.
Electronic Components (SMT and PCB Equipment): Enhances performance in Surface Mount Technology (SMT) and PCB manufacturing by providing fast, precise positioning.
Printing, Textile, and Logistics Equipment: Improves speed and precision in printing machines, textile machinery, and logistics automation systems.
Metal CNC and Laser Machines: Delivers high thrust and accuracy in CNC machining and laser cutting applications, ensuring superior performance in metalworking processes.
