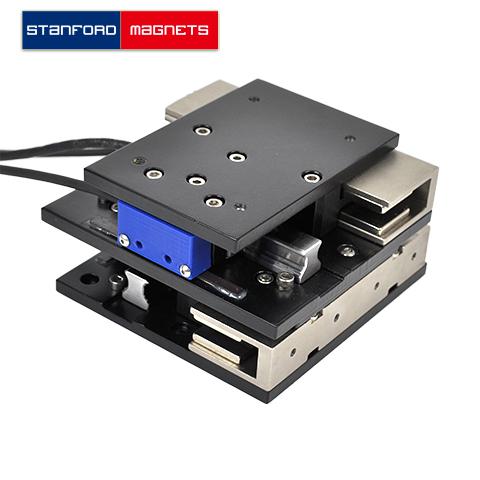

ZR Micro Linear Motor offers a range of advanced features designed for precision and high-performance applications. These motors are coreless, direct-drive, and brushless, ensuring smooth operation and precise positioning. With a toothless design, they eliminate cogging and reduce thrust ripple to a minimum. They provide high thrust with low load, delivering smooth thrust characteristics and high acceleration, making them ideal for dynamic systems. The low thermal resistance and excellent heat dissipation ensure efficient operation, even under continuous use. The use of lightweight thermally conductive materials further enhances thermal management. For added functionality, integrated Hall commutation is available as an option. The modular stator design allows for virtually unlimited stroke lengths, and customization options are available to meet specific requirements.
Related products:
ZR Micro Linear Motor TMCY-0120-080-00A
ZR Micro Linear Motor TMCY-0120-080-01A
ZR Micro Linear Motor TMCY-0120-113-00A
|
Rated Performance |
||
|
Total Stroke |
mm |
20.0 |
|
Peak Force |
N |
39.6 |
|
Continuous Force @ 120℃ |
N |
12.0 |
|
Thrust Constant |
N/A |
7.5 |
|
Back EMF |
Vrms/(m/s) |
8.6 |
|
Coil gap |
mm |
0.7 |
|
Electrical Specifications |
||
|
Peak Voltage |
V |
27.0 |
|
Peak Current |
A |
5.3 |
|
Thrust Constant |
N/√W |
3.8 |
|
Peak Power |
W |
107.0 |
|
Electrical Time Constant |
ms |
0.22 |
|
Resistance |
Ohms |
5.1 |
|
Inductance |
mH |
1.1 |
|
Max. Winding Temperature |
℃ |
125.0 |
|
Mechanical Characteristics |
||
|
Mover Weight (Coil) |
g |
50.0 |
|
Magnetic Track Weight (magnetic track) |
g |
200.0 |
|
Mover Length |
mm |
47.0 |
|
Stator Length * Width |
mm |
67.5*30 |
|
Motor Thickness * Combined Height |
mm |
20*38 |
Optical equipment: Autofocus systems in cameras and microscopes.
Scanning systems: For precise movement in scanning electron microscopes (SEM) or atomic force microscopes (AFM).
Robotic surgery: For precise control of surgical instruments in robotic systems.
Hearing aids: For fine-tuning volume or frequency response.
Therapeutic devices: Such as in automatic drug delivery pumps.
Vibration motors: Used in smartphones, game controllers, and wearables for haptic feedback.
Miniature actuators: In devices like smartwatches or fitness trackers for dynamic response.
Robotics: Precision movement in robotic arms, grippers, and assembly lines.
3D printers: For fine motion control of print heads or extruders.
Satellites: Micro VCMs for positioning antennas, cameras, or other components.
Autonomous vehicles: Actuators for precise movement of sensors or cameras.
Drones and UAVs: For stabilizing and controlling flight systems.
