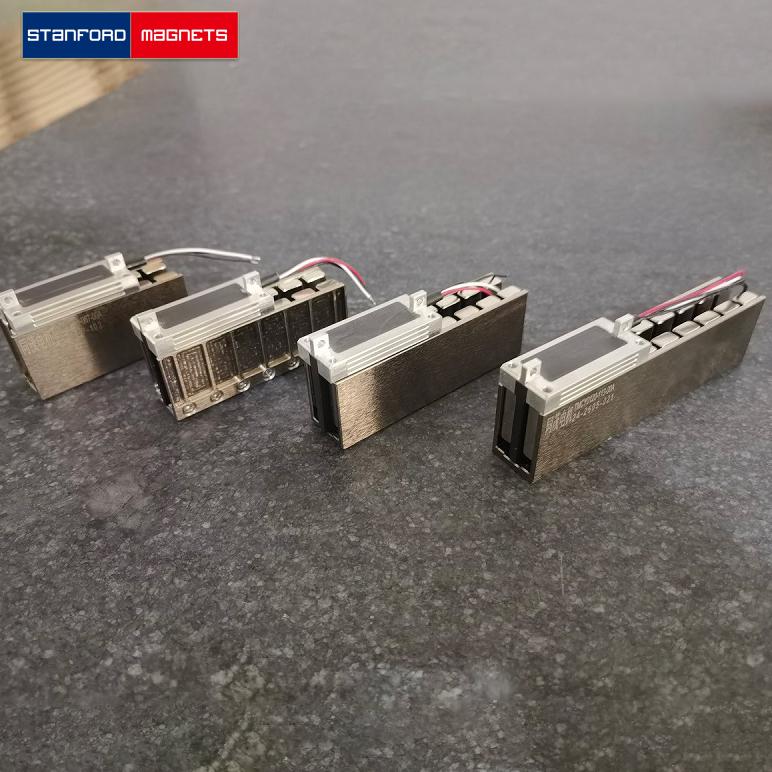

ZR Micro Voice Coil Motors are meticulously designed using coreless, brushless, and direct-drive technologies to ensure exceptionally smooth operation and precise positioning in high-performance applications. Their unique toothless design eliminates cogging effects, significantly reducing thrust fluctuations and ensuring stable and reliable performance. Additionally, these motors deliver high thrust under low loads, featuring smooth thrust characteristics and rapid acceleration, making them ideal for dynamic systems. Superior thermal management is achieved through low thermal resistance and excellent heat dissipation capabilities, further enhanced by lightweight thermally conductive materials that enable efficient operation even during continuous use.
Related products:
ZR Micro Voice Coil Motor TMEP-0009-015-000
ZR Micro Voice Coil Motor TMEP-0020-015-200
|
Rated Performance |
||
|
Total Stroke |
mm |
35.0 |
|
Peak Force |
N |
20.9 |
|
Continuous Force @ 120℃ |
N |
9.5 |
|
Thrust Constant |
N/A |
6.1 |
|
Back EMF |
Vrms/(m/s) |
6.1 |
|
Coil gap |
mm |
0.5 |
|
Electrical Specifications |
||
|
Peak Voltage |
V |
13.7 |
|
Peak Current |
A |
3.4 |
|
Thrust Constant |
N/√W |
3.1 |
|
Peak Power |
W |
47.0 |
|
Electrical Time Constant |
ms |
0.33 |
|
Resistance |
Ohms |
4.0 |
|
Inductance |
mH |
1.3 |
|
Max. Winding Temperature |
℃ |
150.0 |
|
Mechanical Characteristics |
||
|
Mover Weight (Coil) |
g |
48.0 |
|
Magnetic Track Weight (magnetic track) |
g |
355.0 |
|
Mover Length |
mm |
80.0 |
|
Stator Length * Width |
mm |
128*29 |
|
Motor Thickness * Combined Height |
mm |
20*35 |
Optical equipment: Autofocus systems in cameras and microscopes.
Scanning systems: For precise movement in scanning electron microscopes (SEM) or atomic force microscopes (AFM).
Robotic surgery: For precise control of surgical instruments in robotic systems.
Hearing aids: For fine-tuning volume or frequency response.
Therapeutic devices: Such as in automatic drug delivery pumps.
Vibration motors: Used in smartphones, game controllers, and wearables for haptic feedback.
Miniature actuators: In devices like smartwatches or fitness trackers for dynamic response.
Robotics: Precision movement in robotic arms, grippers, and assembly lines.
3D printers: For fine motion control of print heads or extruders.
Satellites: Micro VCMs for positioning antennas, cameras, or other components.
Autonomous vehicles: Actuators for precise movement of sensors or cameras.
Drones and UAVs: For stabilizing and controlling flight systems.
